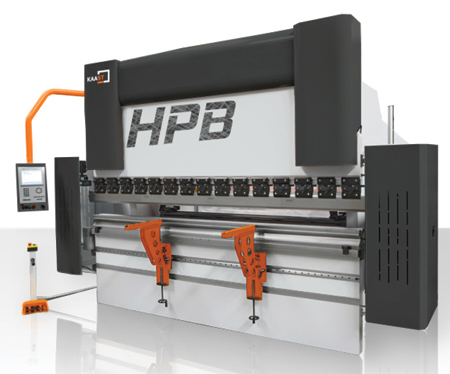

CNC Press Brakes with Touchscreen Control



KAAST Machine Tools, Inc. offers its HPB press brake. This machine features 4-axis, dual Y1 and Y2 ram with glass scales for accuracy, and Delem graphical touchscreen controllers offer easy programming and set-up.

Built in Europe, the HPB is specifically designed and produced with a rigid upper beam running on 8-point bearings with a precision of 0.01 mm (0.0004") with a 2-axis ultra-strong back gauge system with travel of 800 mm (31") and with ± 0.01 mm (0.0004") repeatability. Also available is a full 6-axis ATF dual independent back gauge for complex bends. The bend is controlled by a CNC controller, and foldable back gauge fingers for reverse bending. HOERBIEGER hydraulics provide synchronized working of specially hardened chrome coated cylinders with up to 2,000 tons of pressure across 4-20' of bending length. The press includes quick release clamping, with Promecam type top clamps to help ensure rapid and accurate bends.

Stronger, faster and deeper bends: The HPB is suitable for complicated, sensitive, single or multiple bendings at high speed. "This machine is among the highest rated machines for helping to increase productivity and lower costs with a user-friendly CNC controller and low-cost hydraulic maintenance," said a company spokesperson. "It allows users to have more production capacity and eliminates wasted time in production."

For more information contact:

KAAST Machine Tools, Inc.

3 Merion Terrace

Aldan, PA 19018

224-216-8886

www.kaast-usa.com
