New Compact Robotic Dress Pack System

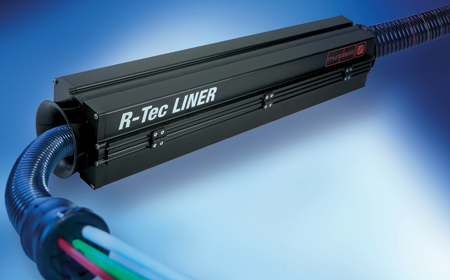

Murrplastik's R-TecLiner self-contained dress pack system is specially designed to guide energy packs from axis three to axis six in industrial robots.

R-TecLiner's unique spring return mechanism is designed to effectively guide the energy package with minimal wear in the smallest possible space. The completely enclosed system comes in a strong aluminum housing to protect against hazards and dust ingress. An anodized aluminum slider requires little maintenance and, combined with the spring return system's reduced wear and tear, helps ensure a long service life.

The dress packs fit Murrplastik's 56/70-size EWX conduits and carry a stroke length of 350 mm to 550 mm. Their compact size allows easy insertion into a small housing, and they can stack horizontally or vertically and even mount directly in specific robots without adding a base plate. Replacement is quick and easy, and the unit can operate over a wide temperature range of -40 °C to 140 °C.

For more information contact:

Murrplastik Systems, Inc.

1175 US Hwy 50

Milford, OH 45150

513-201-3069

www.murrplastik.com
