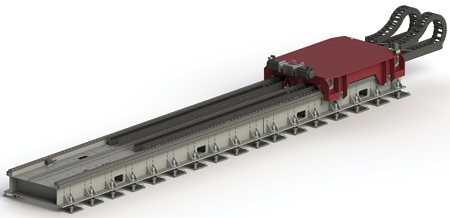

TrackMotion Floor for FANUC M2000iA Robot Family



Güdel, a global manufacturer of linear motion modules, robot track motion units and gantry robots and components, has introduced the new second-generation TMF-6 TrackMotion Floor for the expanding class of super-heavy-payload robots.

 The TMF-6 floor-mounted linear motion module has the capacity to carry robots with total dynamic load of up to 13,300 kg. This TMF-6 module is also capable of carrying static payloads up to 20,000 kg per carriage. Currently, the FANUC M-2000iA series of robots includes four models with payload capabilities ranging from 900 to 2,300 kg. Güdel's TMF-5 model is used for smaller super-heavy robots currently on the market.

"Key integrators and end users are pushing super-heavy robot applications and are now seeing the need for comparable robot floor tracks to maximize work envelopes," said Joe Campbell, Vice President of Sales and Marketing for Güdel. "At these payloads, the demand for highest quality, performance and durability is critical, and Güdel's proven linear motion technology delivers."

The linear floor track extends the work envelope of these super-heavy-payload robots, which can be a critical component in justifying the price point of the machinery. These massive robots are suitable for transferring extremely large and heavy items such as truck and tractor frames, automotive bodies, loaded pallets and large castings, where being able to linearly shift the robot along the floor means extended reach and handling capabilities.

The drive system consists of Güdel gearboxes, Güdel heavy-load guideway systems and Güdel racks and pinions, all made in Güdel's dedicated Swiss production facilities. The Güdel cam follower on guideway system features replaceable cam follower cartridges designed to facilitate quick change-out. This cam follower system is also durable in dirty manufacturing environments. The TMF-6 can be configured with up to two robot carriages as standard. The TMF-6 can be extended from the shortest length of 3 m to up to 100 m.

For more information contact:

Güdel Inc.

4881 Runway Blvd.

Ann Arbor, Michigan 48108

734-214-0000

info@us.gudel.com

www.us.gudel.com
