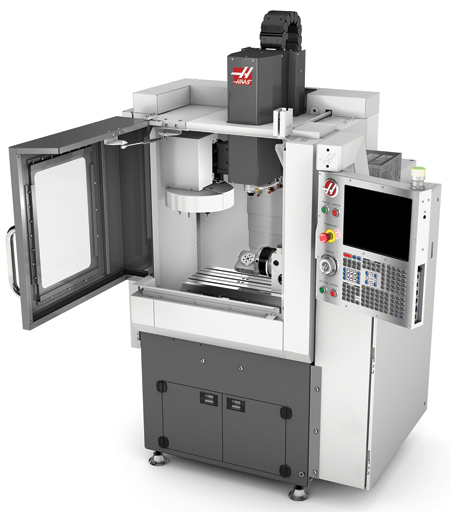

"Small parts manufacturing can pose significant machining challenges for the average job shop," said a Haas spokesperson. "Tiny holes, minute features, extreme accuracies and fine surface finishes may prove difficult for larger CNC machines. Haas Automation's new CM-1 Compact Mill is a small-footprint, high-accuracy solution for the production and prototyping of small, high-precision 2-D and 3-D parts, such as those found in the communications, aerospace, medical and dental industries."
The CM-1 features 12" x 10" x 12" travels, a 20" x 10" T-slot table, a 30,000 RPM ISO 20-taper spindle and a 20-pocket automatic tool changer. Maximum cutting feeds are 500 IPM, with rapids to 757 IPM for reduced cycle times. The user-friendly NextGen Haas control makes set-up and operation simple. Standard equipment includes a 15" color LCD monitor, 1 GB of program memory, Ethernet connectivity, a power-failure detection module, a USB port, a coolant system, high-speed machining software and more. A number of high-productivity options are also available, including a 50,000 RPM spindle and full 5-axis capability.
The CM-1 is small enough to fit into most freight elevators, and can easily be moved with a pallet jack or equipment dolly. The machine runs on single-phase power.
For full 5-axis machining on the CM-1, Haas offers the TRT70 - an ultra-compact dual-axis tilting rotary table that provides ±120° of tilt and 360° of rotation to position parts to almost any angle for machining. The TRT70 provides 60 ft-lbs. (81.3 Nm) of torque on the tilt axis and 40 ft-lbs. (54.2 Nm) on the rotary axis for aggressive machining, and indexing speeds of 410 deg/sec on the tilt axis and 620 deg/sec on the rotary axis help ensure short cycle times. The precision-ground 70 mm (2.76") platter features multiple bolt patterns and a precision through-bore for versatile fixturing, and will swing parts up to 4.0" (102 mm) diameter.
For facilities needing a small-footprint turning solution, Haas offers the CL-1 - an ultra-compact CNC chucker lathe that comes standard with an 8-station automatic turret. The CL-1 is equipped with a 5 HP (3.7 kW) spindle that spins to 6,000 RPM. The spindle's threaded 5C collet nose easily handles bar stock up to 1" (25.4 mm) diameter, and features an automatic air-closer. An optional integrated pneumatic bar feeder and built-in parts catcher on the CL-1 make longer production runs and unattended machining possible.
