Hybrid Swiss CNC Lathe for Machining Efficiency



"Ganesh Machinery specializes in providing its customers with production efficiency using the `machined in one set-up' machining concept as the strategy for keeping its customers competitive," said a company spokesperson. The Ganesh CNC Swiss lathe series, such as the twin-spindle SL-20Y2 8-axis 20 mm Swiss lathe, addresses the need of getting work up to O3/4" done efficiently in only one operation with all of the axial and radial milling features accurately timed and deburred. "Getting the work completed without building fixtures for follow-on operations, and tying up multiple machines and operators, is true machining efficiency," said the spokesperson.

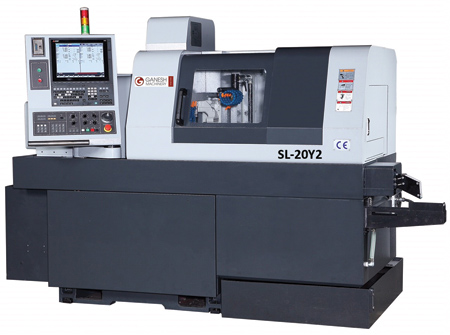

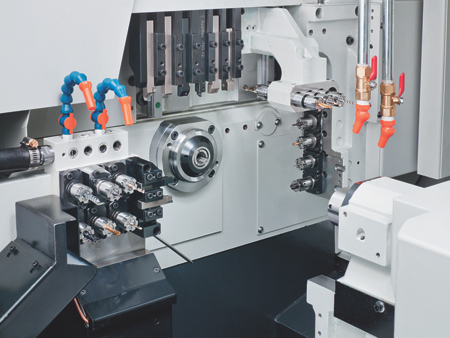

The Ganesh multitasking CNC Swiss lathes start with the 8-axis SL-20Y2 20 mm machine. Ganesh Machinery also offers 32 mm and 42 mm Swiss CNC lathes. The SL-20Y2 can be operated with, or without, a guide bushing so users can choose operating modes that provide the best production solution for each job. The 10,000 RPM main spindle is powered by a 5 HP spindle motor, the sub-spindle turns at 8,000 RPM and is also 5 HP. There are 30 toolholders supplied with the basic machine of which 8 tools are driven using ER-16 collet spindles. The main spindle can bring 17 tools to work the part and the sub-spindle can utilize 13 tools in the basic machine configuration. Many tooling options are available to address the specific tooling needs of each workpiece. All of the Taiwanese built Ganesh machines feature a high-performance C-axis on both the main and sub-spindle for accurately timed axial and radial milling feature placement.

A parts catcher and parts conveyor are provided on all Ganesh multitasking machines to facilitate the careful removal of valuable parts from the machine without any damage. A cut-off confirmation sweep-arm switch is provided to ensure that the part was separated from the barstock successfully. Cutting oil flow confirmation monitoring is provided to ensure that the cutting oil is properly lubricating the cutting tools.

For more information contact:

Ganesh Machinery, Inc.

20869 Plummer St.

Chatsworth, CA 91311

888-542-6374 / 818-349-9166

info@ganeshmachinery.com

www.ganeshmachinery.com

Southeast



FL

Bill Koster

Koster Machinery

1006 Charlotte Ave.

West Palm Beach, FL 33401

561-627-6968

sales@kostermachinery.com

www.kostermachinery.com

AL

Sid Rostami

Metal Worx Machinery

939 Stonecrest Drive

Birmingham, AL 35242

205-408-0195

info@metalworxmachinery.com

www.metalworxmachinery.com

SC, NC, VA

Edward Warg

Crotts & Saunders LLC

4000 Silas Creek Parkway

Winston Salem, NC 27104

877-909-5544

sales@crottsandsaunders.com

www.crottsandsaunders.com



Northeast



CT, MA, ME, RI, NH, VT

Packard Machinery

504 Groton Rd.

Westford, MA 01886

978-692-3100

www.packardmachinery.com

PA, NY, NJ

Brian Ferguson

Synergy Machine Tools

1071 Doans Way

Blue Bell, PA 19422

215-205-0898

info@synergymachinetools.com

www.synergymachinetools.com



Midwest



IL

Mike Plachetka

Machine Tool Diagnostics

1204 Baseline Rd.

Montgomery, IL 60538

630-229-6220

mike@machinetdinc.com

www.machinetdinc.com

MN, IA

Dave Thompson

Machine Tool Supply

3150 Mike Collins Dr.

Eagan, MN 55121

800-288-0717

sales@machtool.com

www.machtool.com

MI

John Minar

Methods & Equipment Associates

31731 Glendale Ave.

Livonia, MI 48150

734-293-0660

sales@methods-equipment.com

www.methods-equipment.com

IN

Kent Baker

CNC System Sales

4760 Kingsway Dr.

Indianapolis, IN 46205

317-251-2770

info@cncsystemsales.com

www.cncsystemsales.com

OH

Greg Knox

Knox Machinery

375 Industrial Dr.

Franklin, OH 45005

877-566-9292

info@knoxmachinery.com

www.knoxmachinery.com

WI

Kit Nelson

Forge (Great Lakes Division)

2814 NE 95th Ave.

Ankeny, IA 50021

262-227-2997

info@forge-gl.com

www.forge-gl.com



West



AZ

Tom Camp

TSM Machinery

3125 N. 33rd Ave.

Phoenix, AZ 85017

602-233-3757

tsmmachine@hotmail.com

www.tsmmachine.com

S. CA

Gary Frost

Machinery Sales Co.

17253 Chestnut Street

City of Industry, CA 91748

800-588-8111

mail@mchysales.com

www.mchysales.com

N. CA

Bob Shenk

Shenk Machinery

1735 Stanford Ave.

Menlo Park, CA 94025

650-766-7264

bob@shenkmachinery.com

www.shenkmachinery.com

N. CA, NV

CNC Solutions

1610 Centre Pointe Drive

Milpitas, CA 95035

408-586-8236

www.cncsolutions.biz



CO, WY

Steve Beck

Automatics & Machinery Co., Inc.

150 Martin Street

Longmont, CO 80501

800-543-7666

sales@automatics.com

www.automatics.com

ID, MT

George Cobb

King Machine Inc

443 W Pennwood St.

Meridian, ID 83642

208-345-9600

sales@kingmach.com

www.kingmach.com
