Sliding/Fixed Headstock Automatic Lathe

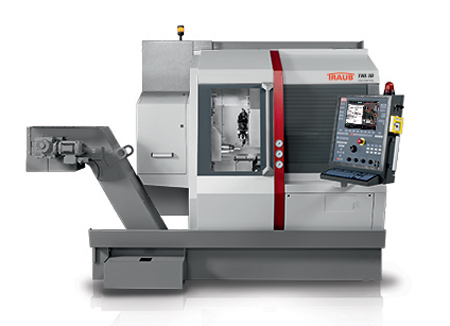

The TRAUB TNL18 series Swiss-style automatic lathes perform dynamically with an enhanced CNC control, axis amplifier and more dynamic drives, resulting in improved accelerations and top speeds. "In extensive tests, the developers made sure that the mechanical conditions of the machine harmonize with the new dynamics," said a company spokesperson.

The TRAUB TNL18 dynamic includes an optimized drive train which will benefit all machines in the TRAUB sliding/fixed headstock automatic lathe range: the TNL18-7B with its seven linear axes and the B-axis on the upper turret; the TNL18 9 with autonomous counter spindle and nine linear NC axes; the TRAUB TNL18-9P, optimized for series production.

The mechanical construction of the TRAUB TNL18 machines effectively handle accelerations up to 25% faster than the previous TNL18. "Better acceleration and optimized NC programs can reduce machining times by up to 21%, while the quality of workpieces remains unchanged," said the spokesperson.

"However, the savings depend also on the complexity of the workpiece," said the spokesperson. "While for a simple shaft that is machined mostly at constant cutting speeds and with only a few tool changes, the savings are about 5%, it is completely different for a dental implant with numerous different turning, drilling and milling operations. Besides reduced secondary times, the shorter acceleration and deceleration processes allow higher feed rates for these complex cutting contours, resulting in the said 21% time savings."

Even if the user does not implement such cycle time-related optimization measures, the operator can still benefit from the new power train. "A higher contour accuracy is possible, and on components with high precision requirements, this can be of great benefit if it reduces the number of measurement processes required," said the spokesperson.

This range of machines includes the new control generation TX8i s V7 on the TNL18-7B dynamic and TNL18-9 dynamic. It offers enhanced performance with enhanced hardware. The TX8i-s V7 comes with many features for programming, editing, simulating, setting up and operating. The state-of-the-art 15" multi-touch display allows both conventional menu operation using a keyboard and the use of touch functions.

"With the TX8i-s V7, the user is well prepared for Industry 4.0 and future requirements," said the spokesperson. The control can also provide a wealth of digital information, process it and pass it on. It also provides automation interfaces, such as the industrial M2M communication protocol OPC UA, and allows integrating the machine into the corporate network.

For more information contact:

INDEX Corporation

14700 North Pointe Blvd.

Noblesville, IN 46060

317-770-6300

sales@index-usa.com

www.indextraub.com
