New Generation of Bar Feeders

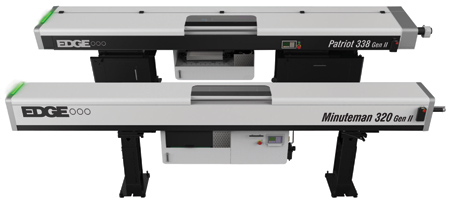

Edge Technologies' Minuteman 320 GEN II and Patriot 338 GEN II are 12' magazine bar feeders. The Minuteman features a 3-20 mm diameter capacity while the Patriot has a 3-38 mm range. Both feature quick-change polyurethane guide channels, hand-held pendant and a Swiss synchronization device.

At IMTS 2016 Edge Technologies will exhibit the new generation of its Edge branded magazine bar feeders, the Minuteman 320 GEN II and Patriot 338 GEN II, created for the production machining industry.

These fully redesigned feeders are 12' units for feeding round, square and hexagonal bar stock into CNC lathes. The Minuteman 320 GEN II features a 3-20 mm bar diameter range while the Patriot 338 GEN II has a 3-38 mm capacity, and both feature hydrodynamic quick-change polyurethane guide channels. An extruded aluminum case surrounds the Minuteman's polyurethane guide channels, helping to increase strength and stability. This channel configuration is flooded with oil to create a hydrodynamic effect resulting in higher RPM with reduced noise and vibration.

Dual anti-vibration devices stabilize the bar stock at two critical points between the guide channel and lathe spindle, increasing RPM potential. Its adjustable roller design provides enhanced support and easy set-up of a variety of bar diameters without the cost of multiple bearing blocks.

As a feature on both of these GEN II bar feeders, the Swiss Package includes a synchronization device and telescopic nose. The synchronization device employs an electromagnetic coupling, mechanically linking the lathe headstock's Z-axis travel to the bar feeder's pusher to help ensure synchronous movement and no loss of connection between the bar stock and collet-pusher. The telescopic nose installs on the rear of the headstock for full coverage with Z-axis support.

The new generation Minuteman and Patriot utilize a Mitsubishi touchscreen control that is designed to be easy to program and flexible for a variety of applications. It features a hand-held pendant that allows the operator to control the bar feeder from multiple areas. A servo drive provides motion control and functionality.

A two-pusher design helps to reduce the overall length of the unit by as much as 4'. A short pusher pre-feeds the bar then retracts, and a second full-length pusher lowers into position to continue the feeding process.
