Multi-Purpose Welder

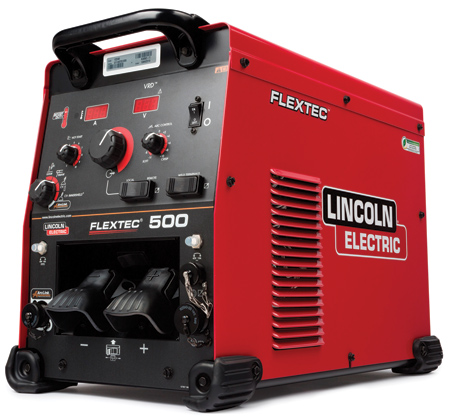

The Flextec 500 multi-process welder from Lincoln Electric delivers up to 500 amps of inverter welding power with quick and easy set-up and operation. Designed with harsh operating conditions in mind, it is engineered to hold up to the rigors of tough environments - construction, fabrication, shipbuilding and other heavy-duty applications.

Compatible with a variety of wire-feeder types, including analog, digital and across the arc, the Flextec 500 delivers multi-process arc characteristics for stick, DC TIG, MIG, flux-cored and arc gouging. The machine's streamlined operator control panel reduces set-up time, simplifying process selection.

With an output range of 5 to 500 amps, the Flextec 500 is rated at 450 amps, 38 volts at 100% duty cycle or 500 amps, 40 volts at 60% duty cycle. Despite the substantial welding output, this compact new model weighs in at 125 lbs. (56.7 kg). Flexible input power capability allows the welder to run on 380 through 600 volt, three phase input power.

Fully encapsulated electronics are environmentally protected in this IP23-rated welder. The unit's internal components are designed and tested to run cool for long life in high-temperature environments.

Also available is the Flextec 500P, which delivers up to 500 amps of inverter-based pulse welding for applications where precise heat input control is critical.

For more information contact:

The Lincoln Electric Company

22801 St. Clair Ave.

Cleveland, OH 44117-1199

216-481-8100 / 888-935-3877

info@lincolnelectric.com

www.lincolnelectric.com
