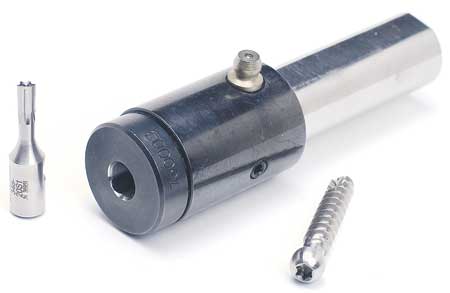

Slater Tools' internal adjustment-free tool holders are designed to allow trapped air and hydraulic pressure to escape during full form applications.
For example, on an internal hexagon the company recommends pre-drilling a hole that is larger than the across the flats dimension of the hex. "This means that only the corners of the hexagon would be cut during the broaching operation, which reduces the amount of force needed and increases tool life," said a company spokesperson. "In this scenario there is no concern about trapped fluids or air.
"However, there is an increased need, particularly in medical and aerospace manufacturing, to remove material full form, that is, not having a pre-drilled hole larger than the across the flats dimension, thus the entire shape is being broached as opposed to just the corners. This can create pressure issues as coolant or air can get trapped inside of the pilot hole. In that scenario, Slater recommends using a broach that is vented (has a hole going through the length of the broach). With vented broaches, the company's tool holder design allows coolant and air to escape more rapidly.
"In either case, Slater's adjustment-free tool holders increase productivity and reduce set-up time through a design that requires no need to center the tool holder. Simply set the rotary broach holder into the machine and you are ready to hit cycle start. For use in both CNC mills and lathes, these compact tool holders require no center indicating and provide tool clearance to eliminate interference. Available in a variety of Swiss-type and standard holder styles and sizes, they are ideal for small part and micro manufacturing, medical and aerospace applications and for producing small forms on CNC lathes or mills."
"The unique design features a sleek cylindrical body to eliminate interference in tight set-ups," said Jeff Tryles, Sales Manager for Slater Tools. "The adjustment-free series is made specifically for Swiss type and other precision machines. This design takes the guesswork out of centering the holder prior to rotary broaching."
Used in combination with Slater's internal rotary broaches, standard or custom made to exact specifications, end users can machine hex, square, spline, serration, torx type or other custom shapes in a variety of materials, according to the company.
For more information contact:
Slater Tools
44725 Trinity Drive
Clinton Township, MI 48038
586-465-5000
direct@slatertools.com
www.slatertools.com
