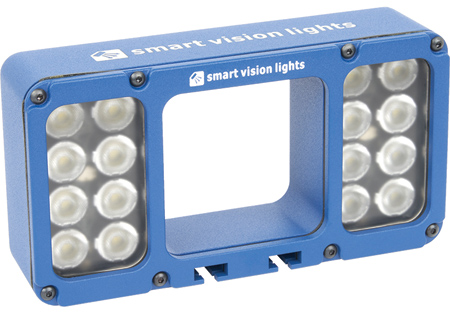

Smart Vision Lights (SVL), a designer and manufacturer of LED illumination solutions, has announced the release of its JWL150, the first in the new Camera-to-Light (CTL) series. The JWL150 delivers an intense, compact light source with an integrated camera mount.
Compatible with most major machine vision cameras, the JWL150 can be directly connected and controlled through a camera's trigger output. Systems integrators often deploy external bar lights or use built-in camera lights, but external lighting takes up valuable space and built-in lights often provide insufficient lighting. In machine vision systems that are tight on space, the JWL150 delivers an intense yet compact lighting option.
"In machine vision applications that require powerful, direct illumination in space-constrained environments, the JWL150 delivers long-distance, high-output light that can connect directly to most cameras on the market," said Steve Kinney, Director of Training, Compliance and Technical Solutions at Smart Vision Lights.
The IP65-rated bright field light features a working distance of 500 mm up to 2,000 mm; 10-, 14- and 30-degree lens options; and built-in Multi-Drive technology, which offers both continuous operation and OverDrive mode. In continuous operation mode, the JWL150 can provide constant light or be triggered following the camera's exposure signal. OverDrive mode delivers up to six times the continuous power with a low-latency response and fast strobe durations down to 10 µs.
The JWL150 features a batwing design that illuminates a larger area than built-in lighting systems and produces a greater light output that easily combines with polarizers, diffusers, and other optical elements that reduce light output. The new JWL150 targets disparate machine vision applications, with a particular focus on high-speed conveyors that require bright illumination at long, stand-off distances.
For more information contact:
Smart Vision Lights
5113 Robert Hunter Drive
Norton Shores, MI 49441
231-722-1199
www.smartvisionlights.com
