Fiber Lasers for Thick and Thin Materials

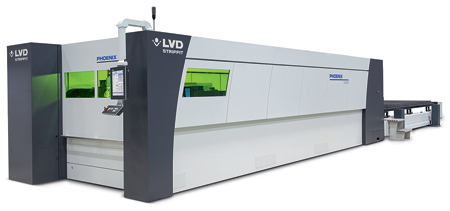

LVD Strippit has expanded its fiber laser portfolio with the Phoenix FL 4020 and Phoenix FL 6020 laser cutting machines designed to handle sheet dimensions of 160" x 80" (4,000 x 2,000 mm) and 240" x 80" (6,000 x 2,000 mm), respectively. Available in 3, 4 and 6 kW versions, the Phoenix models offer enhanced cut quality in both thin and thick materials in standard steels as well as non-ferrous materials and process large sheets quickly and economically.

Phoenix FL machines achieve high cut quality through an advanced cutting head design that allows automated adjustment of focus position and focus diameter, known as zoom focus. To achieve the highest possible speed in every material thickness, focus position and diameter are automatically controlled and adjusted by the CNC controller.

The two models feature uprated drive systems to achieve the same performance as 3015 models, allowing fast processing of large format sheets.

Phoenix lasers provide high dynamic processing and fast cutting speeds due to the 1 µm fiber wavelength. Acceleration and overall accuracy is further supported by the machine's rigid welded steel frame construction. An integrated control and drive system helps ensure reproduction of programmed contours at fast processing speeds.

Phoenix machines keep uptime high with an integrated automatic shuttle table system that allows one table to be loaded while the machine is cutting on the other table.

A touchscreen control and LVD's TOUCH-L user interface make the Phoenix easy to use and operate, further increasing machine uptime. The 19" touchscreen and icon-driven user interface guide the user through all necessary man-machine interactions. TOUCH-L also incorporates a part programming and nesting feature so users can import drawings directly into the control, applying cutting technology and nesting sheets at the machine.

Productivity-enhancing options include a 10-station automatic nozzle changer and CADMAN-L programming software. CADMAN-L allows automatic or interactive determination of cutting sequences, nesting, full cutting path simulation, as well as other powerful features to simplify programming.

For more information contact:

Strippit, Inc.

12975 Clarence Center Road

Akron, NY 14001

716-542-4511

info@strippit.com

www.lvdgroup.com
