Gas-Fired Walk-In Batch Oven
August 1, 2017

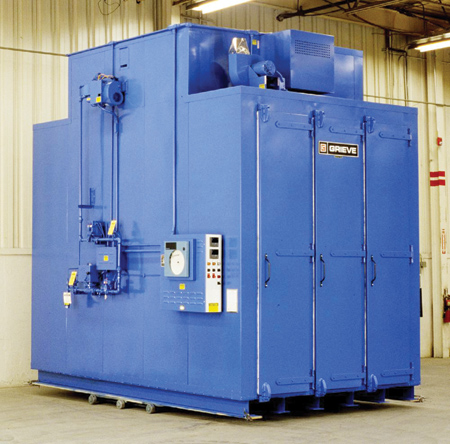

No. 942 is a gas-fired, 350 °F (177 °C) walk-in batch oven, currently used for curing epoxy at the customer's facility. Workspace dimensions measure 84" W x 144" D x 108" H. 400,000 BTU/HR are installed in a modulating natural gas burner to heat the unit, while 12,000 CFM total from two (2) 5 HP recirculating blowers provide combination airflow to the workloads.
This large-capacity Grieve walk-in batch oven features 4" insulated walls throughout, aluminized steel interior and exterior, three independent doors for workspace access on the front of the oven, standard double doors on the rear of the oven, 2" insulated floor with three (3) pairs of built-in truck wheel guide tracks and integral 6" I-beam supports to raise the oven above the factory floor level.
All safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas-heated equipment are onboard No. 942, including a 325 CFM, 1/3 HP powered forced exhauster for quick purge and cool down, dampers on the intake and exhaust for accelerated cooling, as well as a 10" diameter circular chart recorder and digital programming temperature controller.
For more information contact:
The Grieve Corporation
500 Hart Road
Round Lake, IL 60073-2835
847-546-8225
sales@grievecorp.com
www.grievecorp.com
