Automatic Clamping Unit

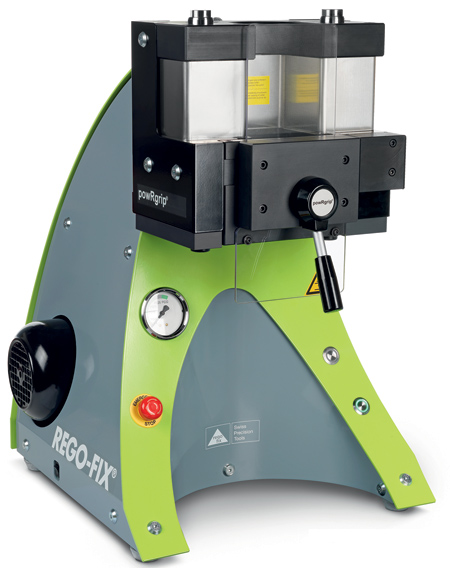

REGO-FIX Tool Corporation has expanded its powRgrip line of toolholding systems with the PGU 9500 automatic clamping unit. "Smaller in size, the unit is ergonomic, energy efficient and practically maintenance free," said a company spokesperson.

The PGU 9500 operates basically the same as REGO-FIX's existing clamping units. However, it has less moving parts and incorporates proximity switches as well as other changes that are designed to boost reliability and system longevity as well as energy savings.

To enhance system speed, ease of use and operator efficiency, REGO-FIX streamlined the PG 9500's exterior design and relocated some key control elements. Operators can reach the unit's emergency stop switch now located up front and the main power switch situated at the side of the unit. All exterior buttons are flush mounted for operator safety and to prevent damage.

REGO-FIX PG toolholding systems rely on the interference between holder and collet to generate their clamping force. Unlike other clamping systems where heat or hydraulics are used to expand the material, the PG uses the mechanical properties of the holder material to generate tremendous gripping force with runout below 0.0001". Interchangeable collets are available from 1/8" up to 1", including metric sizes, and will hold both carbide and HSS tools.

"PG units take less than 10 seconds to press in a tool or remove it from the holder. Because no heat is used, tools can be used immediately after a tool change. Cycle testing exceeded over 20,000 insertions and removals," said the spokesperson.

In recognition of the PG 9500, REGO-FIX received a Red Dot 2015 product design award. The unit won an Honorable Mention within the category of machinery and robotics. The award is a revered international seal for outstanding design quality and granted based on degree of innovation, functionality, handling, durability, ecological compatibility and clarity of function.

For more information contact:

Bill Obras, VP, Sales

David McHenry, Sr. Product Engineer

REGO-FIX Tool Corp.

7752 Moller Rd.

Indianapolis, IN 46268

800-REGO-FIX (800-734-6349)

info@rego-fix.com

www.rego-fix.com
