Eco-Flow Magnetic Coolant Cleaner

Technological breakthroughs in magnetic material allow MPI's Eco-Flow magnetic coolant cleaner to capture significantly more swarf as compared to other magnetic cleaners, according to the company.

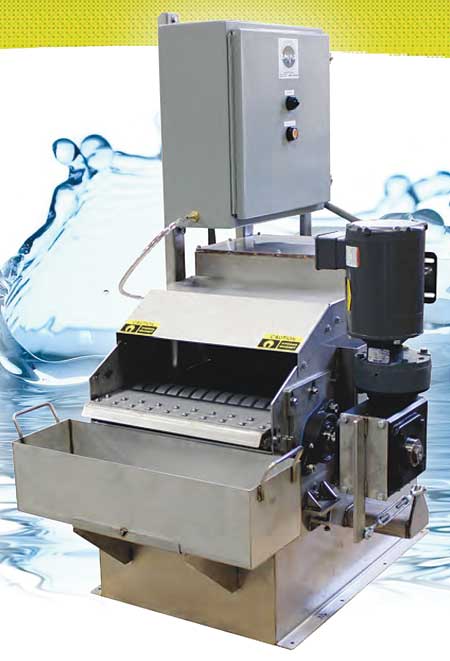

"The Eco-Flow is a continuous cleaning magnetic separator that removes grinding swarf and other contaminants from coolants and deposits them directly into a disposal bin, eliminating the need and costs associated with collecting, transporting and dumping waste materials," said a company spokesperson. "As swarf is removed, fluids are fed automatically back into the reservoir tank. An extremely dry swarf 'cake' is produced. A drier cake means fewer messy, oily pools around machinery and improved coolant recovery. Magnetic technology is green, and substantially reduces both the need to buy costly consumables and the associated downtime required to change paper filters."

According to the company, design features include:

• System ships complete with magnetic roll, scraper system, fluid tank, inlet port (sized to specifications) and controls. Plugs into a standard 110V outlet.
• In-take fluid system keeps coolants calm, allowing contaminants to contact the roll at a lower velocity for improved magnetic filtration.
• An indexing roll design eliminates the need for plastic squeegees. Eco-Flow's adjustable blades allow for maximum magnet cleaning and coolant recapture. Integrated magnetic roll never needs replacement.
• Indexing magnetic roll allows captured swarf to "comb" coolant for magnetic and entrapped nonmagnetic particles.
• An automatic coolant level sensor monitors the level of incoming fluid to maximize filtration and avoid coolant overflow.
• Roller life is extended up to 10 years.
• Overflow bypass eliminates potential spills in case of electrical or mechanical failure.

For more information contact:

Magnetic Products, Inc.

P.O. Box 529

683 Town Center Dr.

Highland, MI 48357

800-544-5930

info@mpimagnet.com

www.mpimagnet.com
