All-in-One Packages to Increase Cobot Flexibility

ATI Industrial Automation has developed CRX-Ready End-Effector Kits, providing FANUC CRX cobot users a simple and effective way to increase the flexibility of collaborative robotic automation. These all-in-one packages include options for automatic tool changing, force sensing and material removal, and enable tasks such as assembly, machine tending, part inspection, surface preparation and others to be implemented and executed easily.

CRX-Ready End-Effector Kits include everything needed to get FANUC CRX cobot applications up and running. In addition to the end-effector, the kit features all the hardware and software required for system connection. Within the teach pendant are simple controls to program the equipment and simplify complex tasks, and through just a few programming adjustments the ATI end-effectors can be repurposed and adapted for future applications.

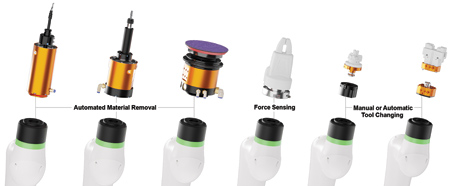

The CRX-Ready Kits are currently available for the following end-effectors:

• The QC-7 Robotic Tool Changer is ATI's newest standard robotic tool changing and storage solution. This lightweight yet durable tool changer offers a variety of configuration options with ATI's Pass-Through Utility Modules and Tool Stand systems.
• ATI's MC-10 Manual Tool Changer is designed to make changing tools by hand affordable and effective. The MC-10 features a patented locking mechanism and an ergonomic design that includes tactile click as well as a visual indicator of Lock/Unlock status.
• The AOV-10 Axially-Compliant Orbital Sander is suited for surface preparation and finishing. With built-in compliance, the AOV-10 is designed for many different robotic application types-even those that require a light touch.
• The Compliant Deburring Blade (CDB) is a motorless deburring tool for operations such as edge deburring, chamfering, countersinking, scraping and deflashing on virtually any material. As the cutting media removes material, the compliance allows for consistent results despite variation in part size, part positioning or robot location.
• ATI's RCV-250 Radially Compliant Deburring Tool is designed for the removal of flash and parting lines, as well as edge deburring from a variety of materials. The RCV-250 has integrated compliance and adjustable cutting force to simplify programming and enable a consistent finish.
• The Axia90 Force/Torque Sensor is a high-performance, low-cost sensor that measures all components of force and torque and gives a cobot the responsiveness to sense and adapt to its environment.

For more information contact:

ATI Industrial Automation

1031 Goodworth Dr.

Apex, NC 27539

919-772-0115

www.ati-ia.com/CRX
