Automation in Sheet Metal Working



Recently acquired by Mitsubishi Electric Corporation, Switzerland-based ASTES4 specializes in the development of automated sorting solutions for sheet metal laser processing machines. ASTES4 has developed LASORTING, a fully integrated system for the cutting, sorting and storage of sheet metal to streamline processes, speed up production and reduce labor costs.

Due to this acquisition, as an established automation solution partner for Mitsubishi Electric, MC Machinery customers now have direct access to sorting solutions for laser automation needs like LASORTING.

To work efficiently, laser-cutting systems need a swift supply of material and subsequent sorting.

"The entire industry is trying to move in the direction of part sorting, and we have seen a lot of excitement surrounding the capabilities of LASORTING," said Jason LeGrand, Automation Specialist at MC Machinery. "This is essentially a smart robot-it knows what the part is, the right measurements and where it belongs. With unmanned operations, human error is eliminated. It is also a safer solution since parts no longer have to be detached from the skeleton and sorted by hand-dramatically reducing accident risks from the handling of heavy loads."

The laser-cutting systems for LASORTING are designed to operate dependably, efficiently and with high cutting quality. They are capable of processing sheets measuring 3 x 1.5 m and 4 x 2 m in an output range of 2 kW - 8 kW. With four sorting heads, each independent head is capable of lifting 1,100 lbs. and has a maximum speed of 9,600 IPM.

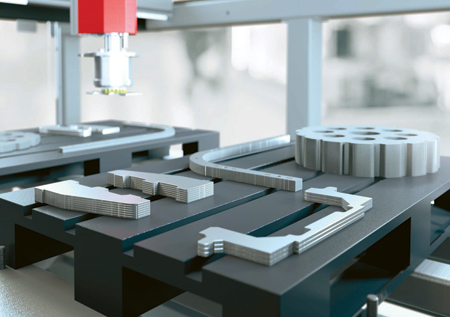

"After loading raw steel sheets, what comes out on the other end are perfectly stacked and organized parts, already on pallets ready for wrapping and shipping or ready to go to the secondary operation," said LeGrand. "A fully automatic warehouse with a sorting system ensures optimum materials flow and continuous processes."

The system is highly configurable to fit many different shop floors. Due to its modularity, LASORTING's production cell adapts to a customer's production requirements and space available on site.

For more information contact:

MC Machinery Systems, Inc.

85 NW Point Blvd.

Elk Grove Village, IL 60007

630-616-5920

sales@mcmachinery.com

www.mcmachinery.com
