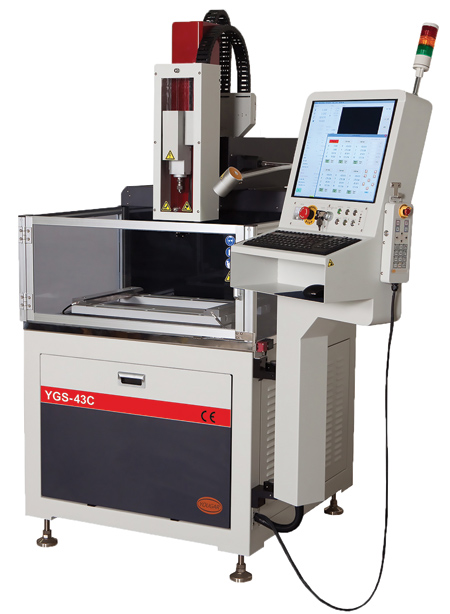

Yougar YGS Moving Head Series CNC EDM Drilling Machines

Absolute Machine Tools, Inc., now the exclusive U.S. importer and distributor of EDM machines and supplies from Yougar M&T, Inc., has introduced the Yougar YGS CNC Moving Head series and YGS ZNC Manual series of EDM drilling machines.

"The design of the YGS CNC moving head series provides smooth motion and stability superior to that of fixed-head, moving-table style EDM drills," said a company spokesperson. An automatic guide changer (AGC) enables easy automatic drilling of holes of different depths and long unattended operations. The machines offer up to 8 fully programmable axes, facilitating processing of complex manufacturing applications. Rotating brass or copper tubular electrodes from 0.1 mm - 3.0 mm (0.004" - 0.118") diameter perform drilling, while a high pressure pump provides adjustable through-spindle flushing from 0 - 750 PSI to maximize performance with any electrode size.

A 17" touchscreen PC display enables operators to manually enter drilling positions or easily import them from a DXF file or wire EDM program file stored on an external source. USB or TCP/IP data transfer interfaces are standard. The built-in supply module for the dielectric system saves space and simplifies maintenance. Dielectric fluid is filtered from 3 µm to 20 µm via a standard replaceable paper filter cartridge. An ION quality sensor and mixed bed ION exchange resin monitors clean water to maintain proper conductivity. Maximum workpiece weight is up to 1,100 lbs. The machines support diverse rotary table manufacturers, tilting head (±45°) and multi-lingual operations.

The YGS ZNC series is comprised of economical high-speed EDM drilling machines that perform simple "start hole" drilling quickly and efficiently with electrodes in diameters ranging from 0.1 mm - 3.0 mm (0.004" - 0.118"). Featuring a 10 µm extended life filter, resistivity sensor and ION exchange resin, the YGS ZNC series provides smooth reliable machining over long periods of time.

Headquartered in South Korea, Yougar builds EDM drills of up to 8-axis capability in both submerged and flushing type designs, with drilling ranges from 0.1 mm - 6 mm (0.004" - 0.24") in both oil and water. Yougar's EDM drilling machines are distributed exclusively in the U.S. by Absolute Machine Tools.

Steve Ortner, President and Owner of Absolute Machine Tools, said, "Yougar has built a global reputation for providing reliable, precise EDM holemaking equipment. We are very pleased to add Yougar's advanced EDM holemaking products and expertise to our EDM lineup to further solidify Absolute Machine Tools as a true solution's provider for manufacturers here in North America."

For more information contact:

Courtney Ortner

Absolute Machine Tools, Inc.

7420 Industrial Parkway

Lorain, OH 44053

800-852-7825 / 440-960-6911
