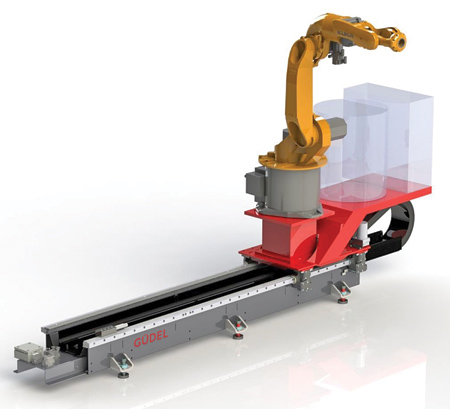

A Preconfigured TMF for High-Volume Robotic Welding



Güdel, a global manufacturer of linear motion modules, robot track motion units, gantry robots and components, has introduced ArcTrack, a preconfigured robot track motion module for arc welding applications designed to deliver high flexibility and reduce lead time by 40%.

Güdel has pre-engineered a TrackMotion Floor (TMF-2) configuration with an auxiliary shelf to carry welding equipment, large wire spools and torch cleaning and reaming devices with the robot. The shelf is pre-engineered to support over 750 kg. The ArcTrack is available for all leading arc welding robots, including FANUC, ABB, Motoman and KUKA, and includes robot-specific gearboxes, motors and cables.

All Güdel TrackMotion units are designed and engineered for harsh environments, including welding, painting, die cast, foundry, sealing, machining and grinding. "Güdel's unique cam follower and cartridge bearing design handle the worst environments and enable 15-minute MTTR for bearing replacement," said a company spokesperson. The ArcTrack is configured with guideway scrapers and a fully enclosed e-chain for the final layer of protection.

Güdel TrackMotion units, including the ArcTrack, are available in lengths from 3-100 m, and can be equipped with robot risers from 50-600 mm. Because ArcTrack is a standard engineered solution, lead times are reduced to 8-10 weeks from order.

For more information contact:

Güdel, Inc. USA

4881 Runway Boulevard

Ann Arbor, MI 48108-9558

734-214-0000

www.us.gudel.com
