Compact VMC for Small Component Manufacturing

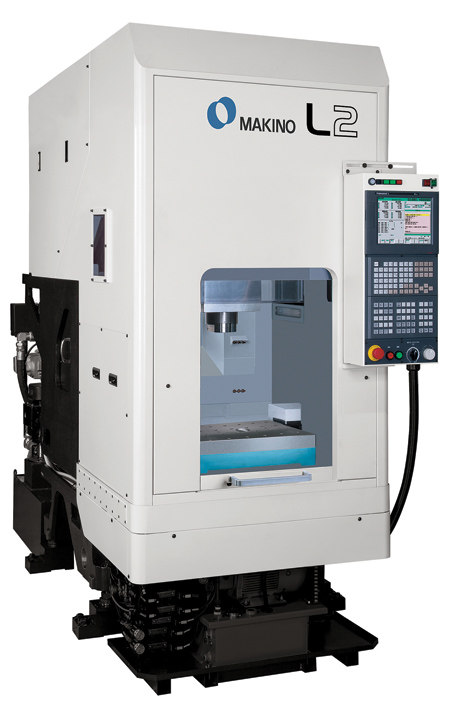

Makino has introduced the L2 vertical machining center (VMC) designed for high-volume, small-part manufacturing. Combining a rigid construction, compact footprint and flexible spindle design, the L2 offers a stable and reliable machine platform for fully unattended, around-the-clock part processing.

"The minimal floor space design and wide range of highly productive standard specifications make the L2 suitable for any type of high-volume, small component processing," said William Howard, Vertical Product Line Manager at Makino. "Given the small size of the machine, it can be effectively employed in virtually any type of workpiece flow arrangement, ranging from manual part transfers to automated part movement facilitated by robotic systems. The L2 can be deployed to meet the specific needs of any manufacturing environment."

The L2 VMC features a compact footprint of 850 mm wide by 2,130 mm long (33.46" by 83.86"), including cooling tank. The X-, Y- and Z-axis travels on the machine are 400 mm by 300 mm by 300 mm (15.74" by 11.81" by 11.81"). A standard, integrated A-axis rotary table and automatic pallet-change system can accommodate workpiece sizes up to 413 mm by 267 mm by 215 mm (16.26" by 10.51" by 8.46"). The A-axis provides six integral ports for hydraulics and pneumatics to support fully automated fixtures. An optional fixed-table configuration without pallet-change system is also available, and can accommodate a maximum workpiece size of 413 mm by 267 mm by 215 mm (16.26" by 10.51" by 8.46").

Highly Precise, Highly Productive Design

Non-cut times, including positioning and chip-to-chip times, are reduced with rapid traverse rates of 48,000 mm/min. (1,890"/min.) and acceleration rates of 2.0G, 1.5G and 1.7G in the X-, Y- and Z-axis respectively. The standard A-axis rotary table and automatic pallet changer further enhance productive capabilities, providing 3-second pallet changeovers to maximize spindle utilization and machine productivity. Configured with 0.05-micron scale feedback and a rigid machine design, the L2 machine is both quick and accurate.

Standardly equipped with a 16,000 RPM, HSK-A50 spindle, the L2 accommodates a wide range of applications. Through-spindle, nozzle, overhead shower and even fixture wash coolant systems provide quick and efficient evacuation of chips from the machine work area. Completing the process, a strategically placed, center trough chip conveyor rapidly removes the chip from the machine. Additionally, the L2 features a 30-tool-capacity automatic tool changer that can accommodate tooling up to 80 mm (3.14") in diameter, 250 mm (9.84") in length and 5 kg (11 lbs.) in weight. An optional 8,000 RPM spindle configuration is also available.

Unattended and Automated Processing

The A-axis rotary table facilitates access to multiple sides of the workpiece in a single set-up, and the automatic pallet changer delivers a fast 3-second pallet change. Outfitted with wide, front-access automatic doors, the L2 is quick and convenient for manual loading applications, and ready for integration into a variety of automated load and unload arrangements.

The L2 is designed for simple and easy integration within a variety of automated transfer and loading configurations, including exterior loading arms, gantry loaders and fixed or movable robot loaders. "These automated configurations help maximize the capabilities and value of the L2, resulting in higher production rates, shorter lead times, reduced labor costs and saving floor space," said a company spokesperson.
