Stainless Steel Air Jets Resist Corrosion and Heat
November 1, 2018

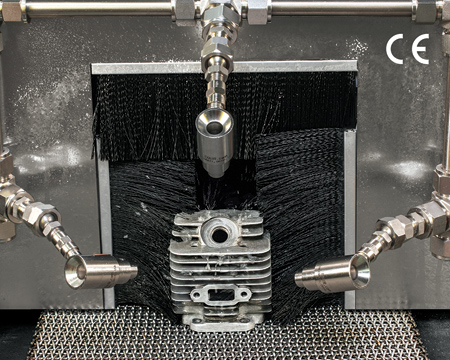

EXAIR's 303SS air jets are designed to provide reliable and efficient blowoff and cleaning within corrosive, high temperature or wash down environments. These 1/8 NPT stainless steel air jets replace open tubes and pipe nipples on parts cleaning, drying and cooling operations. With temperature rated up to 400 °F, they will produce up to 1.25 lbs. of force upon the target.
Available in two styles, the high velocity air jet provides maximum force with a confined and directed airstream. The adjustable air jet style allows the user to easily control the air upon a target with its micrometer air gap indicator. EXAIR air jets utilize the Coanda effect to pull in the surrounding ambient air and increase the total volume of air impacting the target area. Both the outlet and inlet can be ducted for remote positioning.
Air jets require a small amount of compressed air, which can be less than half that of open air lines in a plant. Typical noise level reductions are 8-10 dBA. Stainless steel air jets complement EXAIR's complete line of engineered air nozzles that reduce energy use and noise levels while increasing safety. All EXAIR air jets and nozzles meet OSHA static pressure requirements and CE safety standards.
For more information contact:
EXAIR Corporation
11510 Goldcoast Dr.
Cincinnati, OH 45249-1621
800-903-9247
techelp@exair.com
www.exair.com/ssaj.htm
