To help ensure customers receive the tooling they need as quickly as possible, CERATIZIT offers three advanced tooling solutions that are in-stock and ready for immediate delivery. Among the company's latest UP2DATE product developments, these solutions include enhancements to the EcoCut Series of indexable inserts, the new PolyClamp Verso universal part clamping system and new MaxiLock-N turning toolholders that incorporate the company's DirectCooling technology.
"To overcome the challenges of turning and drilling steels, CERATIZIT has updated its classic EcoCut to the new EcoCut-P, and extensive tests have shown that the new inserts achieve 15% greater performance than the predecessor models," said a company spokesperson. "With the company's special DRAGONSKIN coating for ISO-P materials, the inserts increase tool life and reduce machining time due to the coating's optimized layer structure."
The spokesperson continued, "The coating's mechanical post-treatment induces a unique state of residual stress in the layer surface, which in turn increases process security. The DRAGONSKIN grade CTCP425-P with advanced AL2O3-TiN CVD coating is particularly well suited for when uninterrupted cuts are required. It delivers excellent wear resistance even at increased cutting speeds."
When it comes to general steel machining with interrupted cutting, the AL2O3-TiN CVD DRAGONSKIN grade CTCP435-P suited for poor machining conditions and in applications where a high degree of toughness is required.

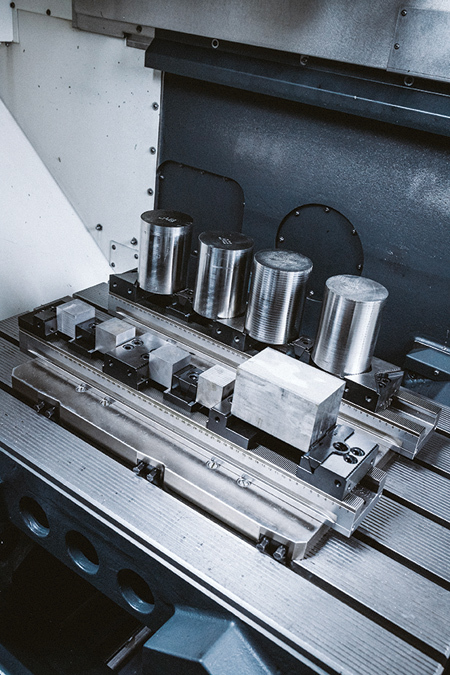

Featuring universal multiple vises, the PolyClamp Verso from CERATIZIT is designed for use in 3-, 4- or 5-axis machines, where it clamps all part variants. The system's jaws are slimmed down for this purpose while allowing more jaws to be clamped per base rail for clamping larger unmachined or finished parts.
A scale lasered onto the centric vice is a further benefit when it comes to handling. It allows the jaws to be positioned evenly and precisely on the rail, in accordance with requirements.
The PolyClamp Verso is equipped with a quick jaw change system as standard. Using just two screws, the fixed and adjustable jaws are released, removed upwards or repositioned. This reduces set-up times because each jaw is individually removable without having to dismantle the others.

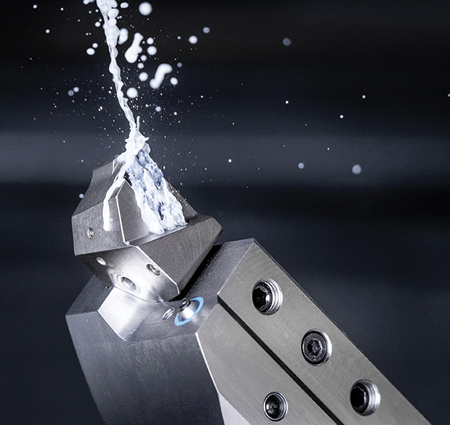

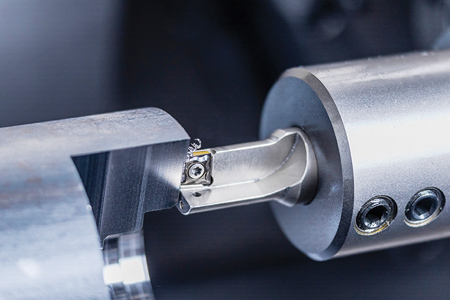

Complementing CERATIZIT's DirectCooling product range, the MaxiLock-N turning toolholders incorporate two internal coolant holes that aim coolant directly at the cutting edge to prevent wear and help ensure stable processes. Using these coolant holes, nozzles direct coolant to the clamping flat from above as well as from below to the flank. This additional flank cooling contributes to the tools' ability to extend tool life by 60% compared to those that cool only at the clamping flat, the company reported.
To avoid interference with workpiece contours, the lengths of DirectCooling Series holders are ideally matched to one another and offer greater stability and flexibility. This flexibility is further enhanced with an HSK-T universal standard interface for turning tools that helps ensure straightforward connection to multifunction machines such as turning/milling centers and milling/turning centers.
