Ring-Handle Detent Pins for Fastening Applications

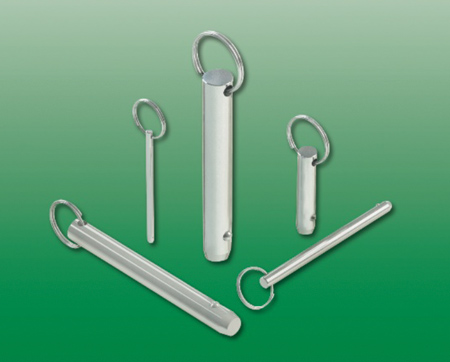

FXW-185: Fixtureworks' lineup of workholding components includes ring-handle detent pins.

Fixtureworks offers its lineup of ring-handle detent pins in steel and stainless steel.

"Detent pins provide a secure, quick, easy and positive engagement for fastening, locating and alignment applications," said a Fixtureworks spokesperson. They are suitable for applications that require frequent, repetitive use. The pins, with ring handle, work within commercial drill tolerances, and their spring-loaded ball retracts when inserted or removed.

They come in diameter sizes of 3/16" to 1" with a pull-out strength from 4 to 40 lbs. The grip lengths range from 1/2" to 6" depending on the diameter.

The detent pins are available in either C1144 steel with steel split rings or 303 stainless steel with 316 stainless rings. The steel pins and rings have a zinc-plated clear chromate finish. In both instances, the ball and spring are made from 316 stainless. The detent quick release pins are RoHS and DFARS compliant and made in the USA Wire rope lanyard assemblies are also available.

Fixtureworks offers a wide assortment of industrial products including vises, modular fixturing, clamps, supports and stops, workholding and positioning components, fasteners, fixturing accessories, quick-release ball-lock pins, one-touch fasteners and rollers and bumpers. "Its products are highly versatile easily adaptable to different applications including design, inspection, machining and finished goods," said the spokesperson.

For more information contact:

Fixtureworks

33792 Doreka Drive

Fraser, MI 48026

888-794-8687 /586-294-1188

info@fixtureworks.net

www.fixtureworks.net
