Electronic Digital Height Masters

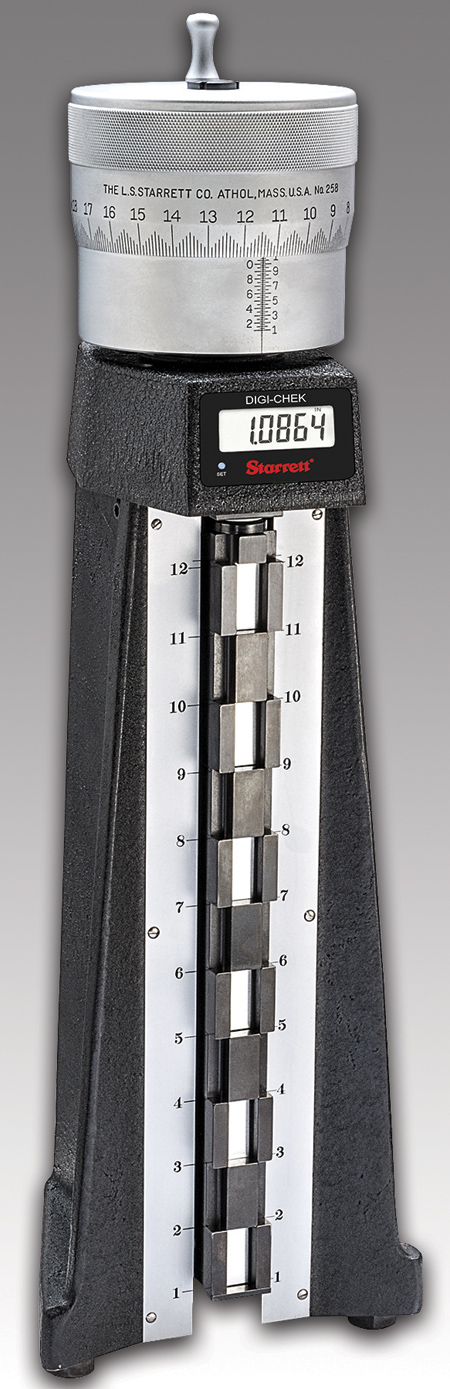

The L.S. Starrett Co. offers its Digi-Check Height Masters with electronic digital readout. The Digi-Check No. 258 Series Height Masters combine the accuracy of Starrett-Webber Gage Blocks with a precision micrometer head and digital readout display.

"Accurate, stable, easy-to-read and American made, Digi-Check Height Masters provide an ideal reference setting for checking bore gauges, inside micrometers, end measuring rods and other gauges and height measurement of parts," said a company spokesperson.

The Digi-Check Height Masters have a large, easy-to-read electronic digital display providing instant readout to .0001" or 0.001 mm. In addition, a graduated satin chrome finished precision micrometer head, with speeder knob for fast positioning, provides staggered graduations reading to .0001" or 0.002 mm. Both the micrometer head and digital readout are directly in line with the operator's vision. The Digi-Check gauge's housing within a heavily flanged frame and base featuring three-point hardened, ground and lapped bearing pads contributes to an enhanced accuracy of +/- .0002" (+/- .005 mm) and makes the gauge stable. Gauge blocks are assembled in a free-standing system isolated from the frame, allowing the blocks to conform to the workpiece temperature. Accuracy is further enhanced via a one-piece micrometer spindle with hardened and stabilized measuring threads.

Both over and under heights on Digi-Check Height Masters can be checked directly from the gauge blocks in a single setting, and with reference surfaces on the top and bottom of each block, adjacent blocks are in the same plane. Readings can also be taken from either left, center or right of the gauge block column. The column design also permits wringing a 1" block between two blocks in the column - convenient for setting and checking other gauges.

Starrett Digi-Check No. 258 Height Masters are offered in three ranges: .100" - 12.100", .100 - 18.100" or .100 - 24.100". Metric models are also offered in three ranges: 2 - 302 mm, 2 - 452 mm, or 2 - 602 mm. Gauges are furnished in finished, fitted wood cases. Height Master accessories such as Starrett reverse reading blocks and riser blocks are also available.

For more information contact:

The L.S. Starrett Company

121 Crescent St.

Athol, MA 01331

888-674-7443 / 978-249-3551

general@starrett.com

www.starrett.com
