Quick-Swap Inspection System

Phillips Precision's Products Division offers its Vision Corner Block as part of the Inspection Arsenal LEAN, Quick-Swap inspection fixture system. "Not only does Phillips Precision offer the only quick-swap standard fixture systems, but it also provides quick, creative fixture design," said a company spokesperson. "Inspection Arsenal tooling will help optimize users' inspection process and uncover hidden profits."

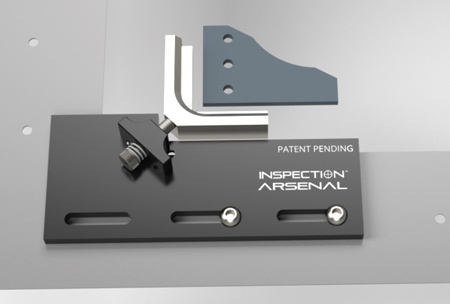

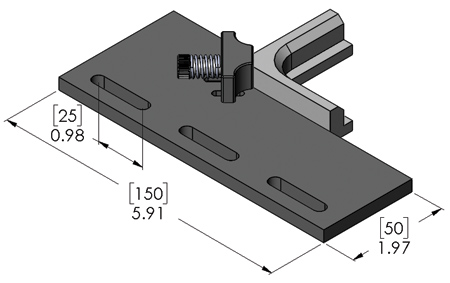

This corner block for vision inspection allows COMPLETE access to the entire edge of the part without interruption. Use the pinball-like spring feature to nudge the workpiece away from the corner block to a repeatable distance. The dock is slotted for a universal fit to most any vision stage. Simply shift in any direction to catch the hole pattern. Add more than one corner block to the stage or to Open-Sight fixture plates to inspect multiple parts.

Inspection Arsenal benefits:

  • Inspect more parts per shift
  • Create multiple quick-swap set-ups per CMM
  • Move fixtures from one machine to another
  • Adapt and reuse existing fixtures effortlessly
  • Access granite surface easily
  • Use CMM palletization features
  • Work toward lights-out inspections
  • Use as dedicated tooling - add it to a job box.

"Inspection Arsenal complements other fixturing and the value makes converting from other techniques cost-effective. Plates with air-glide feature are made to order. Standard Loc-N-Load product is ready-made and the company has a same-day shipping policy," said the spokesperson.

For more information contact:

Phillips Precision, Inc.

Products Division

141 Shrewsbury Street

P.O. Box 1094

Boylston, MA 01505
