Flex Gauge Inspects Range of Gear Sizes

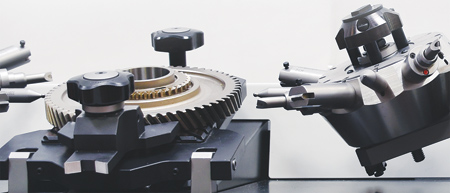

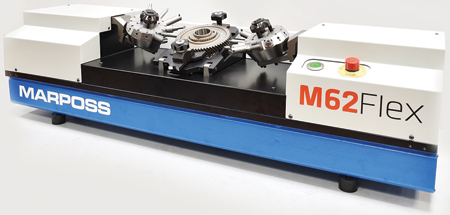

Marposs Corp. has announced its new M62 Flex manual bench gauge system for the production floor, designed to provide the flexibility to measure gears with different diameters without mechanical retooling. Utilizing a universal reference "Vee" on a 30° angle eliminates the need of using an I.D. centering post (or nosepiece) to locate each part for measuring, and it reduces set-up time.

"The gauge employs servo-driven actuators and is the first smart gauge that integrates "soft-touch" technology when engaging with the gear being measured," said a Marposs spokesperson. Soft-touch technology addresses the age-old issue where green parts and master parts could be damaged by the measuring contacts. The M62 soft-touch technology employs a software routine where the measuring group is able to approach a gear surface in velocity mode, with a controlled low force, while the position error is monitored, resulting in better control of the process and avoiding damage.

The M62 Flex can inspect odd or even toothed helical and spur gears with external diameters from 30 mm ÷ 180 mm, heights ranging from 15 mm ÷ 40 mm and modules from 1 to 4. It has mechanical turrets with capacity to locate up to 12 contacts each and is suited for inspecting DOB (MdK), major diameter and minor diameter.

For more information contact:

Marposs Corporation

3300 Cross Creek Parkway

Auburn Hills, MI 48326

888-627-7677

marposs@us.marposs.com

www.marposs.com
