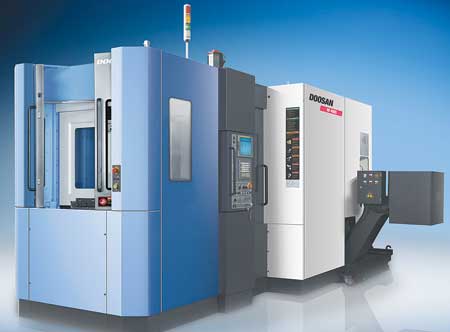

The HC 400 horizontal machining center (HMC) from Doosan is intended to be a compact, high-precision, heavy-duty workhorse with performance-enhancing features included as standard that make it useful for OEMs and job shops. According to the company, a large Meehanite cast iron bed, large linear roller guideway and inline 30/35 HP, 10,000 RPM spindle enable heavy cuts on tough materials with enhanced surface finishes and accuracy.
To help minimize set-up time and increase productivity, the Doosan HC 400 is equipped with an automatic pallet changer featuring twin tapped pallets. Each pallet measures 15.7" x 15.7" and can handle a maximum load of 882 lbs. All axes are driven by high-precision double-nut ball screws supported on both ends by angular contact thrust bearings. According to the company, this double pretension design provides enhanced positioning repeatability. Axis travels are 23.62" in X, 22.05" in Y and 22.24" in Z. Maximum cutting feedrate is 787 IPM, with rapid traverses to 1,574 IPM.
The high-precision 35 HP, 10,000 RPM inline spindle is designed for high stock removal and deep drilling operations. The machine is equipped with through-spindle coolant and an oil-cooled spindle chiller that maintains a constant temperature at high speeds, thereby reducing thermal growth and increasing cutting accuracy.
The Doosan HC 400 features a 60-pocket cam-type, swing-arm automatic tool changer. Its random access operation ensures instant tool availability, even with short cutting cycles, according to the company. The cam-actuated arm provides tool changes in 1.5 seconds tool-to-tool and 4 seconds chip-to-chip.
For improved chip flow, a telescopic cover inclined at a 30° angle directs chips into a trough, keeping the area around the table clean. In addition, high-velocity air jets clear away chips while pallets are being changed to help provide accurate positioning at high speeds.
The HC 400's FANUC 32i-A control has a 90° swiveling operator console for improved ergonomics. A hand-held manual pulse generator with 10' cord allows full access to the machine and controls axis movement in increments of x1, x10 or x100 for quick and easy fixture or part alignment.
