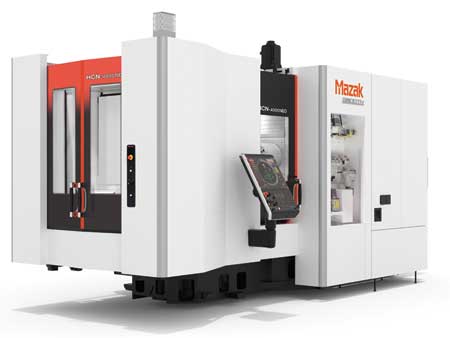

Mazak recently demonstrated the next-generation productivity and versatility of the HCN-4000 NEO HMC with High Rise PALLETECH system.
While the HCN-4000 NEO was featured with a 12-station HIGH RISE PALLETECH system, it also accepts the MULTI-PALLET POOL (MPP) system and external robot. A standard 40-tool magazine keeps the machine supplied during extended machining with larger-capacity options available, including 60-, 80-, 120- or 160-tool magazines or a TOOL HIVE with 240 or 348 tools.
The HCN-4000 NEO's standard 18,000-RPM high-rigidity spindle accelerates to top speed in 1.8 seconds and is designed for versatile performance and high-efficiency machining of a variety of workpieces. Spindle options include a 12,000-RPM unit for general machining; a high-torque 15,000-RPM spindle for heavy-duty machining of difficult-to-cut materials; a high-speed, high-output 20,000-RPM configuration for high-speed machining with small diameter tools or aluminum; and a high-speed 25,000-RPM spindle for precision machining of aerospace and die-cast components.
The machine's MAZATROL SmoothG CNC provides 4-axis speed and precision with a touchscreen that operates like a standard mobile device. The control makes it easy to generate programs for processing complex parts through off-centerline machining as well as angled drilling, milling and tapping, with full support for EIA/ISO G-code and Mazak MAZATROL conversational programming.
Direct transmission of driving power to the HCN-4000 NEO's rotary table axis eliminates inefficient power transmission components such as the worm shaft and the worm gear. Designed for sustainability, the machine consumes less power, extends coolant service life, limits coolant changes and simplifies maintenance.
The HCN-4000 NEO offers updated design features that enhance performance. The three-point leveling bed eases installation. Linear roller guides provide high accuracy and heavy-duty machining to reduce noncut time. For enhanced surface finishes and optimal tool life, the integral spindle/motor minimizes vibration, even at high speeds. To protect the spindle from thermal change, temperature-controlled cooling circulates around its bearings and headstock.
