OPEN MIND Technologies offers a working environment in hyperMILL CAD/CAM software that focuses on "CAD for CAM," addressing the requirements of CAM programmers who are not traditional CAD users. hyperMILL CAD for CAM provides two formats for CAD functions to enable selections and interaction.
The first approach is a traditional CAD front-end. Here, the user has a working environment to import CAD data, create and edit curves, surfaces and solids, as well as utilities for move, copy and pattern commands. Then there are additional functions targeted for CAM users, including radius and draft analysis, curvature and zebra maps, co-axial and co-planar selections, tags to easily arrange features such as all fillets of a certain size. Additionally, there are some advanced functions to refit a surface or mesh to simplify the model or improve the machining process, and deformation capabilities to account for expected machining deflections, or spring back during post-machining stamping process. This breadth of functionality provides users with easy and powerful CAD capabilities.
Secondly, OPEN MIND merged its CAD and CAM development teams to further integrate CAD requirements directly in hyperMILL CAM strategies. The result of these developments is impactful to the user, saving keystrokes and lessening the impact of working in the CAD or the CAM environment.
A few examples include the following:

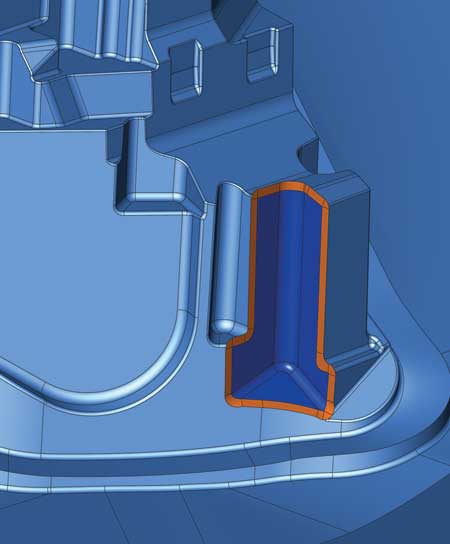

- Machining boundaries can be selected by hovering a mouse near an edge without creating the boundary curve as a CAD entity.
- Surfaces can be automatically extended over external edges. This process checks and avoids overlaps in the extended region. The benefit is the ability to generate tool paths that produce a sharp edge without roll-over and without CAD construction.
- Drive curves for swarf cutting can be generated automatically over multiple surface patches, including corner blends.
The benefit of these CAD for CAM functions offered in hyperMILL reduce clicks and programming time, freeing up programmers to focus on manufacturing tasks.
