Quick Jaw Change System
September 1, 2014

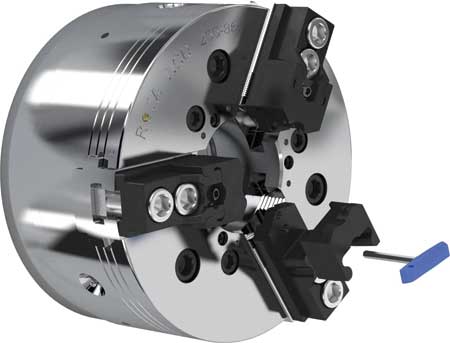

With a changeover time of five seconds per jaw, the SCHUNK PRONTO quick jaw change system is designed to provide quick set-up times for all standard lathe chucks with fine serrations of 1/16" x 90° and 1.5 mm x 60°.
The quick-change retrofit set consists of support jaws and clamping inserts. It is suitable for O.D. clamping of pre-machined and finished parts. By using the interchangeable insert, the clamping range can be extended by up to 16 mm without having to re-set the supporting jaw. "This is an increase of 300% in comparison to conventional lathe chucks," said a company spokesperson.
"For jaw changes with repeatable accuracy, the locking is released with an Allen key, the jaw is removed and replaced by another, eliminating incorrect positioning," said the spokesperson. "In locked condition, a six-sided form-fit clamping helps ensure maximum process stability and provides high force and torque transmission."
As required by the application, three supporting jaw variations are available for small, medium and large clamping ranges. Four hard claw inserts for various diameters and clamping ranges as well soft interchangeable inserts for finished parts processing are provided. Once they have been turned, the inserts can be used repeatedly on a system. The clamping depth can be varied by using a workpiece stop. It is available in size 250, with more sizes to come.
For more information contact:
SCHUNK Inc.
211 Kitty Hawk Drive
Morrisville, NC 27560
800-772-4865 / 919-572-2705
info@us.schunk.com
www.schunk.com
