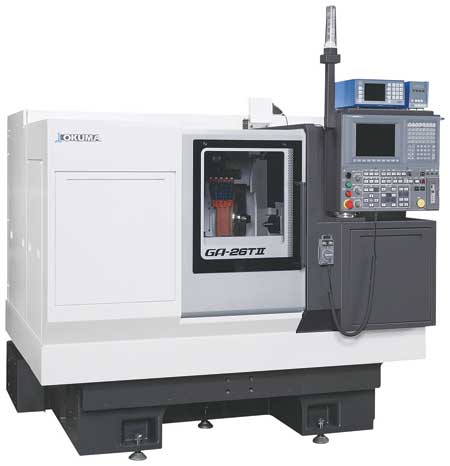

Cylindrical Grinding Machines for Automated Production Environments



Okuma's GP/GA-26TII series of compact cylindrical grinders is available in both plain head (GP) and angle head (GA) and designed to support O.D. grinding in high-volume, automated production environments.

The compact TII-Series is engineered to hold the workpiece stationary while the grinding wheel traverses back and forth - extremely cost effective for production lines with small to mid-sized parts, according to Okuma. Equipped with features designed to provide enhanced automation, this machine provides simultaneous dressing and loading, fixed-table construction, wheel head traverse construction and compact design.

Grinding applications include:

  • Center work and optional chuck work operations
  • Straight plunge, multi-plunge, cylindrical traverse, face plunge and tapered traverse grinding operation
  • Taper, arc and complicated form grinding.

Features of Okuma's patented hydrodynamic wheel spindle:

  • Provides rigidity
  • Includes offset radial load equal to 1 micrometer per 100 kg. (.000018" per 100 lbs.)
  • Includes rotating accuracy of 0.01 micrometer (.0000004")
  • Provides higher surface finishes
  • Eliminates chipping of brittle materials such as carbides and ceramics
  • Eliminates dulling at the edges of splines and other intermittent shaft surfaces.

Controlled by the Okuma THINC OSP control, the GP/GA-26TII series is capable of simultaneous two-axis control and is designed to handle a wide variety of workpiece shapes in a simple data setting. The addition of automation accessories can make them part of a flexible manufacturing system.

For more information contact:

Julie Murphy, Marketing Manager

Okuma America Corporation

11900 Westhall Drive

Charlotte, NC 28278

704-588-7000

www.Okuma.com
