Gun Barrel Drilling and Reaming on One Machine
October 1, 2017

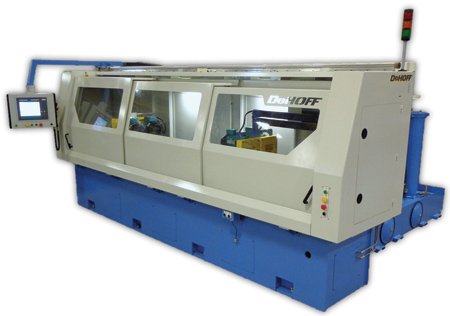

The DeHoff G560-DR2 performs both gun drilling and reaming operations on gun barrels. After the barrels are gun drilled, a quick tooling changeover allows a pull-reaming operation to be performed using the same machine. The twin-spindle machine has a drilling capacity of 17 to 50 caliber and a slide travel of 60" (1,524 mm).
The G560-DR2 is part of a turn-key package of gun barrel manufacturing equipment offered by DeHoff, including machines for gun drilling, pull-reaming, button rifling, cut rifling, as well as tooling, heat treat ovens and gauging equipment.
DeHoff machines are made in the USA and feature a cast iron drill head base with hardened and ground steel box ways, plus hand-scraped and fitted saddle, gibs and straps (versus linear guide ways and milled surfaces). This results in enhanced vibration damping, extended tool life and improved surface finish.
For more information contact:
Kays Engineering, Inc.
900 Industrial Dr.
Marshall, MO 65340
660-886-9929
info@kays-dehoff.com
www.kays-dehoff.com
SOUTH-TEC Booth 1533
