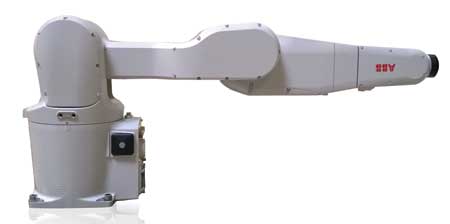

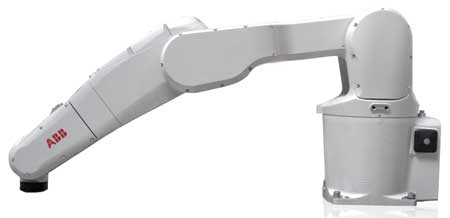

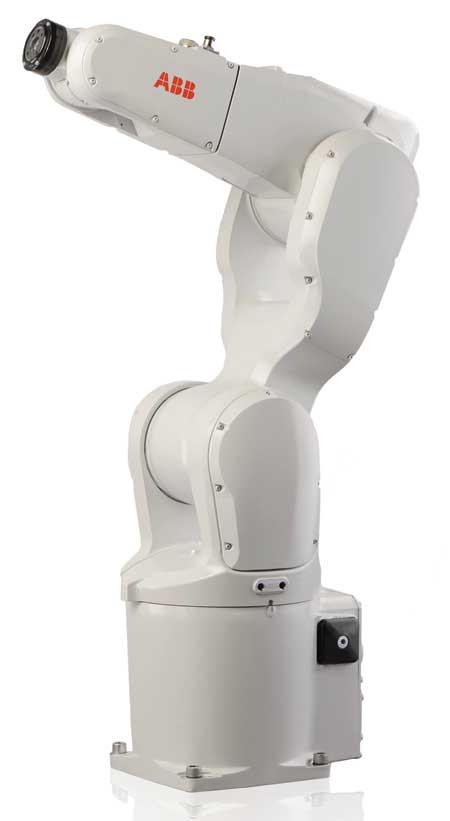

ABB Robotics' IRB 1200 family of small robots features a compact footprint and a large work envelope. According to the company, they provide flexibility, ease of use and short cycle times to a wide range of material handling, machine tending and small parts assembly applications.
The IRB 1200 is designed with no offset in axis two, delivering a longer stroke that allows the robot to be placed very close to the workpiece and still be functional. "Combined with other signature features, the longer stroke enables up to 15% smaller work cells and 10% shorter cycle times than comparable robots," said a company spokesperson. "The footprint is most compact when the smaller, lightweight robot is invert mounted on a ceiling or wall, maximizing the efficient use of space in the cell.
This robot family is available in two standard variants: a 700 mm reach model with a payload of up to 7 kg, and a longer reach 900 mm model with a payload up to 5 kg. Both variants can be mounted at any angle and come with IP 40 protection as standard, with IP 67 protection available as an option. The variants share the same parts, making them cost effective to produce, operate and maintain. An ISO 4 version will be available in the near future.
"The sleek, smooth surfaces and enclosed design feature all wiring and air routed through the inside of the robot, from very close to the wrist flange all the way to the foot," said the spokesperson. "This further enhances its compactness, and makes the new robot easy to maintain and clean, with no risk of dirt or dust collecting on the cables."
Both electrical and air connections can be made to the robot via side ports or an underline option, and with an Ethernet port, four air ducts and 10 customer signals, it is easy to integrate the IRB 1200 with other equipment.
The IRB 1200 robot family is targeted for the following markets:
- Material handling: large work envelope and short turning radius; expanded markets with food grade and ISO 4 cleanroom options to be introduced in 2015.
- CNC machine tending: optional IP 67 protection; invert mounting eliminates interference from the robot foot, allowing for more compact cell designs and easier integration with CNC machinery.
- Polishing and dispensing: path accuracy and rigid structures suitable for demanding process applications.
- Small parts assembly: position accuracy and compact footprint with underline connector option; integrated vision available with IRC5 single cabinet controller.
