Easy to Install Incremental Encoder

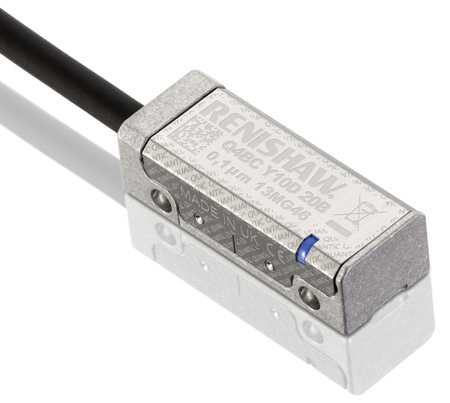

Renishaw offers an encoder family for linear axes that features wide installation tolerances and axis speeds of up to 24 meters per second. The QUANTiC encoder series produces a digital signal output directly from the readhead and eliminates the requirement for additional bulky external interfaces. This approach was first used for Renishaw's advanced VIONiC encoders.

"In OEM applications, machine build speed is critical," said a company spokesperson. "Swift component installation reduces lead times and increases profitability. QUANTiC encoders have been designed with this in mind and feature Renishaw's widest ever set-up tolerances, exceptional dirt immunity and the optional Advanced Diagnostic Tool (ADT) for remote calibration and in-depth diagnostics."

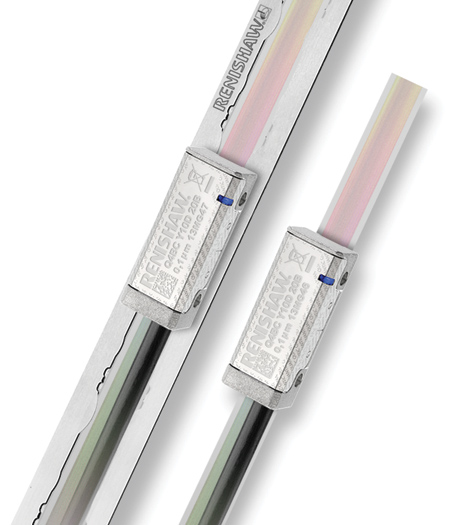

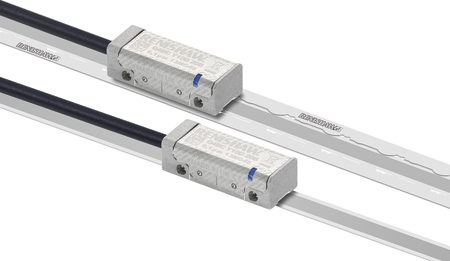

The QUANTiC encoder system uses a 40 µm-pitch scale, which translates to larger installation tolerances and higher operating speeds due to the optical design of Renishaw encoders. For instance, readhead installation rideheight and yaw tolerances are now ±0.2 mm and ±0.9° respectively. Available scale options include RTLC40 for carrier track (FASTRACK) mounting and self-adhesive RTLC40-S: both simplify thermal error compensation by allowing independent scale expansion relative to the substrate.

The QUANTiC encoder system is highly immune to dirt and contamination due to several advanced design features. QUANTiC readheads incorporate Renishaw's filtering optics that averages the contributions from many scale periods and effectively filters out non-periodic features such as dirt. Measurement signals are further enhanced by a range of electronic signal processing algorithms such as Auto Gain Control (AGC), Auto Offset Control (AOC) and Auto Balance Control (ABC). QUANTiC encoders also feature a third layer of signal filtering from a new detector design which helps to eliminate non-harmonic signal frequencies that can occur due to contamination on the scale. These signal conditioning features combine to ensure low Sub-Divisional Error (SDE) and minimal signal variation over contamination.

Ease of both set-up and calibration is supported by an Advanced Diagnostic Tool (ADT) that combines both ADTi-100 hardware and ADT View software components. Features and benefits include: remote monitoring; visual and audio indication of signal size limit switches and readhead pitch; DRO output; Lissajous output; and the ability to save data in multiple common file formats.

"QUANTiC encoders are designed to help speed up the pace of mass production lines and offer potentially significant time and cost savings for OEM customers," said the spokesperson. The QUANTiC family has CE approval and is manufactured by Renishaw, using strict quality controlled processes that are certified to ISO 9001:2008.

For more information contact:

Renishaw, Inc.

1001 Wesemann Dr.

West Dundee, IL 60118

847-286-9953

usa@renishaw.com

www.renishaw.com/quantic
