Programmable, Portable CMM Solution

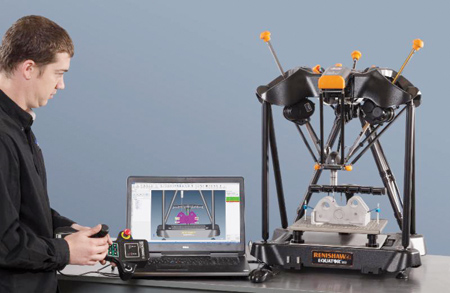

The new Verisurf CMM Master 500 is available in standard height (9.8" working height) and extended height (15.7" working height), and is powered by Verisurf Software.

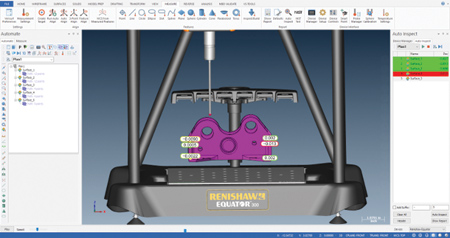

The complete automated shop floor inspection system combines the power of Verisurf Software with Equator comparative gauges to deliver a fully programmable CMM solution, suitable for the quality lab and shop floor.

Verisurf Software, Inc. will present its new CMM Master 500, programmable CMM solution at IMTS in booth #133345. The CMM Master 500 is an expanded version of the current CMM Master 300 model, but with nearly four times the capacity of working volume and combined part and fixture weight. The complete automated shop floor inspection system combines the power of Verisurf software with Equator comparative gauges designed to deliver a fully programmable CMM solution, suitable for the quality lab and shop floor.

The new Verisurf CMM Master 500 is available in standard height (9.8" working height) and extended height (15.7" working height), and supports the same productivity features as the smaller models, including:

  • Automated or manual joystick inspection
  • Online and offline part programming-programs can be created offline from CAD or online in "teach" mode using the CMM joystick
  • Multiple part alignment methods-align parts from simple 3-2-1 feature fitting or iterative best fit
  • Full simulation and collision detection-simulate measurement routines including probe scanning to help prevent potential CMM crashes before they occur
  • Flexible reporting options-automatically generate AS9102 First Article Inspection Report; inspection data can be exported to other popular presentation formats including, Microsoft Word, PowerPoint and Adobe 3D PDF Viewer
  • Operates on single phase power with no need for compressed air.

"The new CMM Master 500, with its expanded volume capacity, offers improved practicality both on the shop floor and in the quality lab. Powered by Verisurf Software, the solution is suitable for first article and automated production inspection and reporting requirements," said Ernie Husted, President and CEO of Verisurf. The same software also enables quality engineers to program and run automated inspection routines on fixed gantry CMMs and other portable devices across the manufacturing enterprise, further increasing efficiency while reducing customer training, data management and support costs.

For more information contact:

Verisurf Software, Inc.

4907 E. Landon Dr.

Anaheim, CA 92807

888-713-7201 / 714-970-1683

info@verisurf.com

www.verisurf.com
