Inspection Fixture System



Phillips Precision's Products Division has announced its new Radial Loc-N-Load Plate as part of the Inspection Arsenal LEAN, Quick-Swap inspection fixture system.

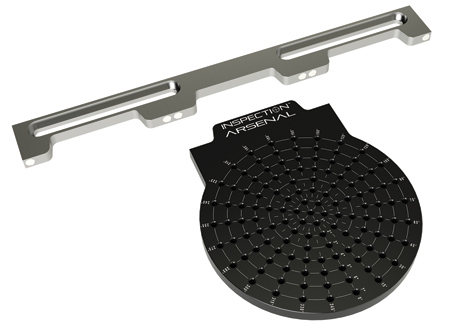

The Radial Loc-N-Load plate is 8" in diameter, 1/2" thick black hard anodized aluminum with 1/4-20 threaded holes. Because not every part is square, a radial hole pattern is used rather than a grid pattern in 1/2" offsets starting from the center hole. The smaller bolt circles have 30° spacing and the larger ones are 15°.

The plate is laser marked with rings to make aligning parts visually easy. The signature Loc-N-Load shape is added to locate the plate in the docking rail for inspection. Magnets are designed to hold the plate accurately and securely and allow for easy release. Add Inspection Arsenal workholding, such as silver-bullet, trigger-finger hold downs, stand-offs and more to enhance set-up.

The new radial plate is the latest addition to the Loc-N-Load fixture plates system. Loc-N-Load aluminum fixture plates interlock magnetically to remain firmly secured, yet release quickly and easily for the next job. The system installs effortlessly on all CMMs. Selecting a system is easy with preconfigured CMM bundled fixture systems. Select the docking rail and plate bundle that suits an application. Choose from 12", 18" or 30" rail and plate combinations. Next, choose the size of workholding kit that will suit an application-51, 70 or 146 pieces. They all contain selections of the Inspection Arsenal trigger action, low-profile clamps, rails, stops and hold-downs to enable quick and easy set-up. All docking rails, plates and workholding are also available for purchase individually.

For additional information visit www.leaninspection.com to find case studies and demo videos.
