Shank Attachments and Angle Heads



High speed modular shank for NSK

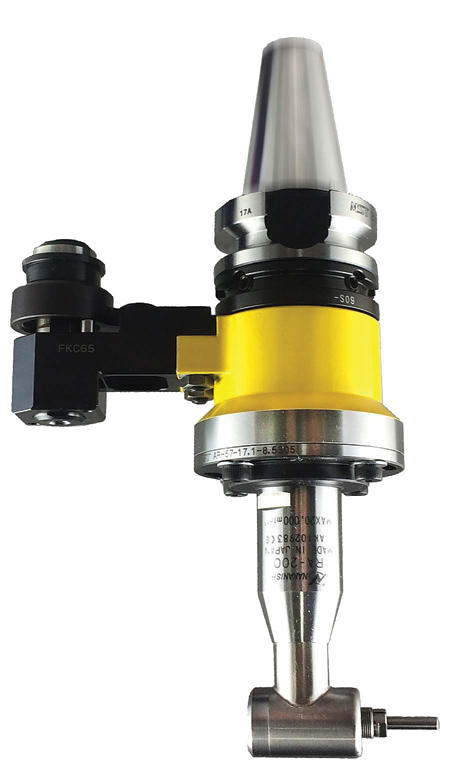

Tecnara offers shank attachments designed for use with high speed compact NSK angle heads. They handle speeds up to 20,000 RPM and feature air/oil lubrication. The integrated air/oil lubrication system provides ample lubrication under the stress of high-speed operation. The compact design enables machining of very deep and small diameter cavities. Available shank styles are CAT40, CAT50, BT30, HSK63, HSK100 and C6.

The Modular series features a modular design that provides complete interchangeability among shanks and angle heads, making it suitable for short-run jobs. Within a couple of minutes, shanks and heads can be changed to meet the requirements of a new task. There is a wide range of projection lengths and collets; angle heads are available in 45° and 90° configurations. Two-inch, 4", 6" extensions and miniature angle heads for tight-space applications are also available. Modular series attachments are available with coolant-through cutting tools in selected models.

Designed for heavy-duty cutting, MST Solid heads can be switched among machines with the same taper and flange. Equipped with an orientation ring and key, they can be set for any cutting direction. Flange Series heads are available in three angle-shaft configurations: collet chuck, BT30 and CAT40 master-holder type. "They are as accurate as they are versatile and robust: .0002 inch T.I.R. at the cavity is guaranteed," said a Tecnara spokesperson. MST flange heads are bolted onto the spindle face for maximum rigidity.

MST HALF series of angle heads are designed for light-duty operations, including drilling, tapping and milling. The HALF Mini is lightweight and ultra-slim. With up to 1/4" chucking capacity, the HALF Mini fits into I.D.s as small as 1.42". HALF Universal angle heads can cut from any angle from 0° to 360° and 0 to +/- 120°. All HALF Series angle heads are available in CAT, BT, HSK, Capto and KM shaft configurations.

For more information contact:

Tecnara Tooling Systems, Inc.

12535 McCann Dr.

Santa Fe Springs, CA 90670

562-941-2000

la@tecnaratools.com

www.tecnaratools.com

IMTS 2018 Level 3, Booth W-432071
