Quick-Change Workholding Products and Custom Design and Build Capabilities



In addition to numerous new products and automation demonstrations, Jergens will feature custom design and build solutions.

Jergens Inc. will display its new innovations, including top tooling; a new line of pallets, risers, receivers and adapters; and custom design and build solutions.

Additionally, Jergens will display its entire range of quick-change workholding including Ball Lock, Drop and Lock, FixturePro, Zero-Point System (ZPS) and OK Vise.

A next generation multi axis 130 mm self-centering vise will be introduced. Part of the FixturePro line of modular 5-axis workholding, the new vise actively reduces jaw lift - a common issue where vise jaws flex and raise up during the clamping process. The unique vise also has an easy centering adjustment and uses a screw with trapezoidal threads for increased durability. The new 130 mm vise is also engineered to be a suitable fit with the Fixture Pro System.

Also on display will be Jergen's Quick Loc line of pallets, cubes and rotary receivers. These low-profile pallets are configured in industry-standard pull stud patterns of both 52 and 96 mm and feature accurate repeatability.

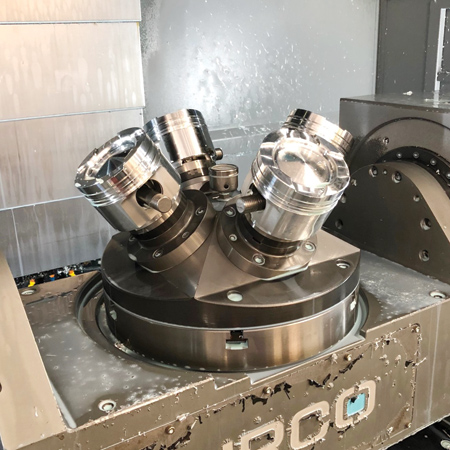

Jergens will have products and personnel on hand to discuss the company's custom design and build workholding capabilities. The expanded effort combines with existing Fixture-Pro, multi axis and other workholding products. Custom design and build capabilities allow customers to enhance their manufacturing productivity with efficient quick-change products tailored to their specific needs.

As a way of putting it all in motion, Jergens will automate several fixtures and workpieces on a Toshiba TVL 700 robot and a Lyndex-Nikken 5-axis rotary table.

For more information contact:

Jergens, Inc.

15700 S. Waterloo Rd.

Cleveland, OH 44110-3898

877-486-1454

info@jergensinc.com

www.jergensinc.com

IMTS 2018 Level 3, Booth W-432154
