Multispindle Automatic Lathe

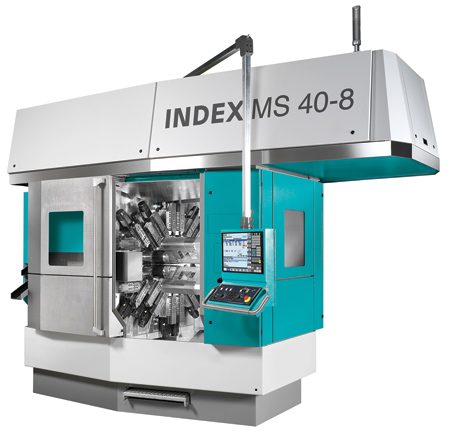

INDEX will introduce to North America its MS40-8 multispindle automatic with 8 CNC spindles, two back-working spindles for rear-end machining, deploying up to 18 CNC slides (X and Z) and additional Y axes if required. The machine is suitable for high-volume precision work in the automotive, fastener, connector and aerospace industries.

The MS40-8 handles bar stock through a new bar loader, the INDEX MBL40-8 or chuck parts. The 110 mm chuck allows machining of pre-formed, forged or extruded parts of up to 80 mm. For simple parts, the machine can be used as a double 4-spindle machine, reducing cycle times by half.

The heart of the INDEX MS40C-8 multi-spindle automatic lathe is the compact spindle drum with eight fluid-cooled motorized spindles with synchronized technology (max. 7,000 RPM, 24 kW, 57 Nm). They are characterized by infinitely variable speed control, high torque, low size and no maintenance requirements.

With the increased number of main spindles and tool carriers, the MS40C-8 is able to completely machine even very complex parts in one operation. Up to two pivoting synchronized spindles are each able to work on up to seven rear end machining tools, four of which can be live. A new feature is that two rear end machining tools can work simultaneously on the workpiece.

A highlight of the MS40C-8 is its versatility. For example, if components need to be cut with only a small number of tools, it can be used as a highly productive double four-spindle machine. If the user makes this choice, he has essentially two four-spindle machines available each of which provides a synchronized spindle for rear end machining. Each cycle finally outputs two finish-machined components from the machine.

"Since each spindle is independently programmable, it is possible to machine troublesome materials that up to now were hardly suitable for multi-spindle machines," said a company spokesperson. Speed changes are possible also during drum indexing, resulting in no additional downtime.

Because users can set up live tools on the compound slides, multiple machining operations can be accomplished: off-center drilling, thread cutting, inclined drilling, cross drilling, contour milling, hobbing, bevel gear cutting and multi-edge turning and more.

For more information contact:

INDEX Corporation

14700 North Pointe Blvd.

Noblesville, IN 46060

317-770-6300

sales@index-usa.com

www.indextraub.com

IMTS 2018 Level 3, Booth S-338136
