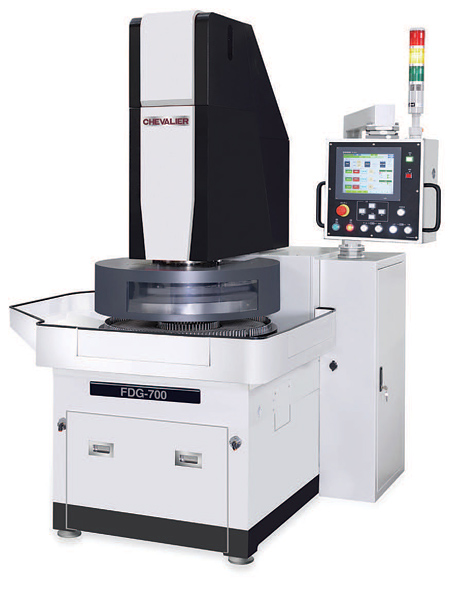

New Double-Sided Grinder for Flat Workpieces



"Equipped with the latest technology in graphic controls, engineering and ergonomics, Chevalier's new FDG-700 is loaded with the features that make the innovative double-sided grinder the ideal machine for a variety of workpieces," said a company spokesperson.

The FDG-700 features Chevalier's proprietary PC-based graphic control with a 10.4" touchscreen monitor, making it possible to intuitively operate the machine entirely by conversational graphic control.

The new machine also features a high-precision digitally controlled pneumatic system that automatically adjusts according to the selected pressure. The high-precision contact measuring system includes grinding height control and dressing monitoring.

The FDG-700 is suitable for mass production of small and medium size workpieces that require high precision and high efficiency within a small footprint. The new machine has been ergonomically designed for greater efficiency and productivity.

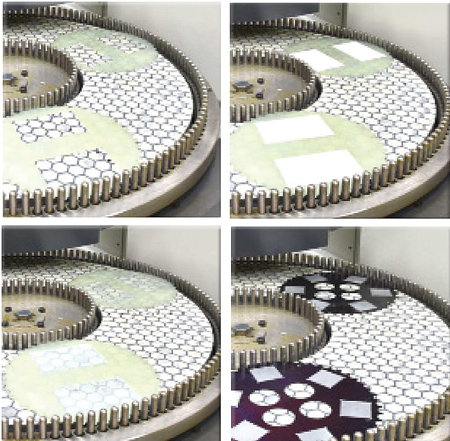

Variable speed spindle coupled with a high-torque gearbox provide the flexibility needed to machine all types of workpieces. Optimum surface finishes, flatness and parallelism with tight tolerances provide enhanced results for a range of applications, including precision grinding for crystals, ceramics, optical glass, semiconductors, tungsten carbide, metal and other hard and brittle materials.

Specifications:

  • Capacity: wheel diameter, 27.5"; maximum workpiece diameter, 9.85"; maximum workpiece thickness, 2.95"; maximum load pressure, 600kPa.
  • Control system: SMART PC based
  • Upper disk: power 7.5 HP / speed 125 RPM
  • Lower disk: power 7.5 HP / speed 125 RPM
  • Inner disk: power 7.5HP / speed 75 RPM
  • Dimensions: 67" W x 59" D x 98" H.

Optional accessories include:

  • Coolant system with automatic paper feeding device and chiller
  • Coolant system with automatic paper feeding device and magnetic separator and chiller
  • Centrifuge type (5µm) with cooling device plus chiller
  • Grinding plates
  • Holder for dressing rings, dressing, wheel carrier and workpiece carrier
  • Loading tables.

For more information contact:

Chevalier Machinery Inc.

9925 Tabor Place

Santa Fe Springs, CA 90670

562-903-1929

info@chevalierusa.com

www.chevalierusa.com

IMTS 2018 Level 3, Booth S-339482
