Measuring Tools Lineup



Mitutoyo America Corporation will showcase the following products:

  • MiCAT Planner V.1.5: The MiCAT Planner automates the generation of measurement programs based on CAD models containing Geometric Dimensioning and Tolerancing (GD&T) information, as well as Dimensional Measuring Equipment (DME). When no GD&T information exists, it can easily be added.

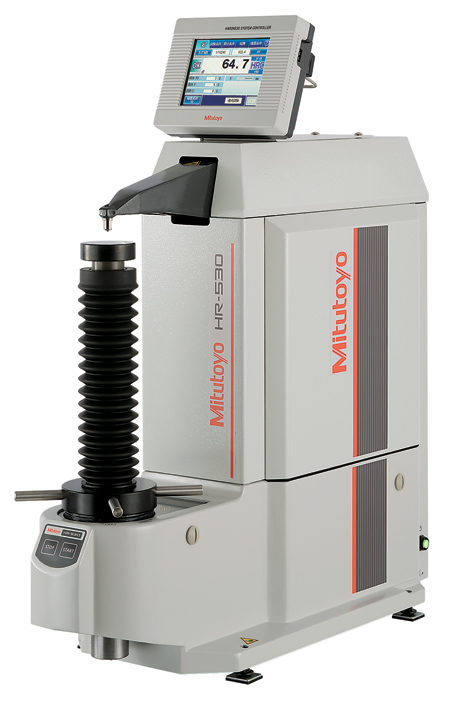

  • HR-530 Series Rockwell Hardness Testers: Provide electronic control giving it the capability to perform Rockwell, Rockwell Superficial, Rockwell testing of plastics (A and B) and Light Force Brinell hardness testing. Test the hardness of an inside ring wall without cutting the ring.

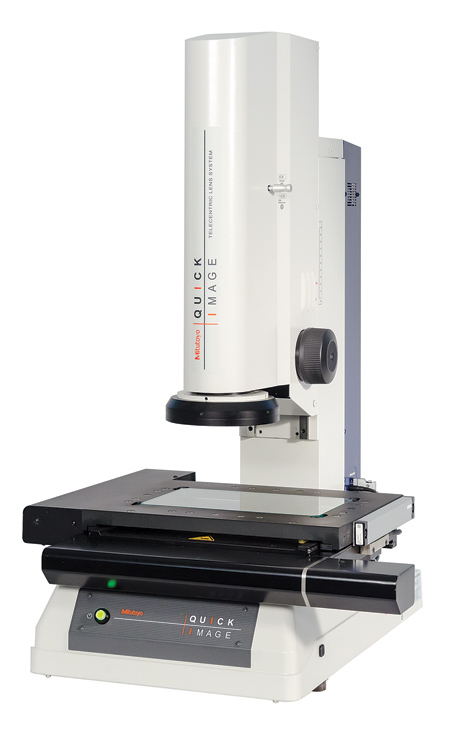

  • Vision Quick Image: The Quick Image series of telecentric lens-based 2-D video inspection systems includes three new CNC models, in addition to the currently available manual models. QIPAK software includes an image stitching function. The combination of the moving stage and image stitching allows for entire coverage of the measuring envelope for larger pieces. QIPAK software creates inspection routines, part programs and repeat measurements using a single mouse click.

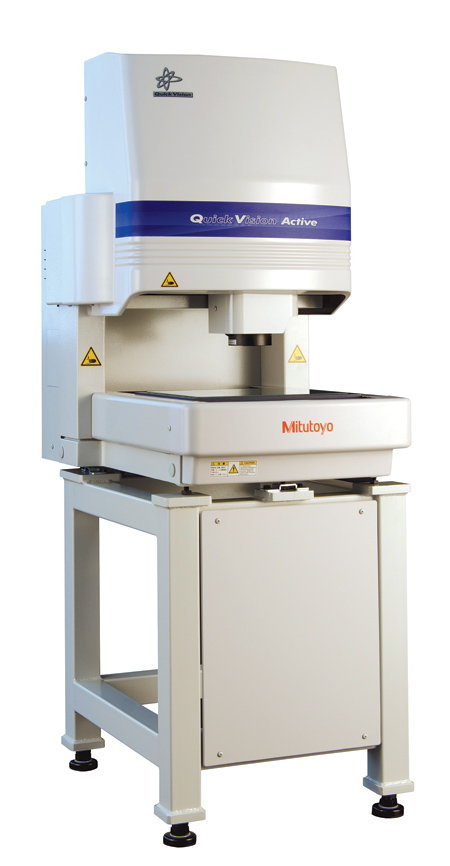

  • Quick Vision Active: The Quick Vision Active is efficient and flexible, offering a wide field of view with interchangeable objective zoom lenses to meet the challenges of measuring small to large features. The 8-step zoom lens can achieve a magnification range of 0.5X to 7X (20X ~ 137X on-screen magnification) while maintaining crisp image quality. The 1X optional objective achieves a magnification range of 0.5X to 3.5X (13X ~ 92X on-screen magnification) with an increased working distance of 74 mm. The 2X optional objective can achieve a magnification range of 1X to 7X (26X ~ 183X on-screen magnification).

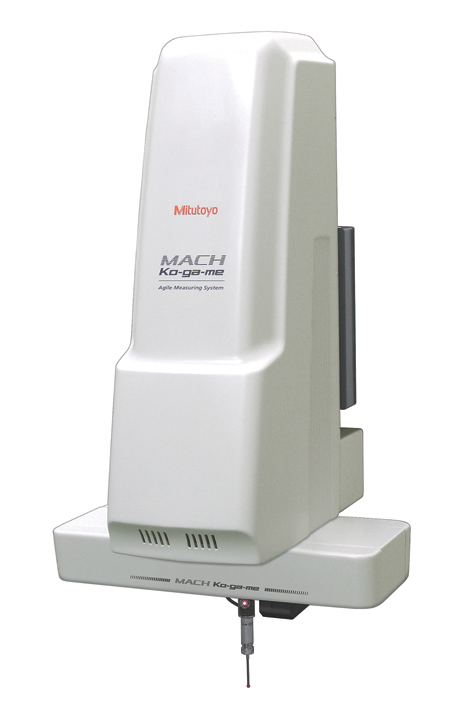

  • MACH Ko-ga-me / Compact 3-D CNC Measuring System: Small-sized, requiring only a minimal envelope (15.0" [382 mm] x 14.6" [373 mm] x 27.7" [705 mm]) and weighing 61.7 lbs. (28 kg), it is available using either a fixed base (wherein the workpiece moves during measurement) or using a moving-axis mounting system of the customer's own design. The measuring systems are available for horizontal or vertical installation and can be used in stand-alone applications or integrated into work cells.

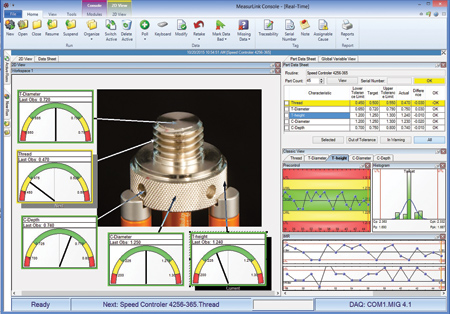

  • MeasurLink: The MeasurLink Quality Management Software is a full partner for manufacturing process control system. Combining real-time online data collection, real-time SPC charts and analysis for operators and real-time quality control/supervisor reports and alerts for entire manufacturing system. It is designed for integrated networks to create a quality information sharing system, including a comprehensive metrology solution.

For more information contact:

Mitutoyo America Corporation

965 Corporate Blvd.

Aurora, IL 60502

630-820-9666 / 888-648-8869

marketing@mitutoyo.com

www.mitutoyo.com

IMTS 2018 Level 3, Booth E-135215
