Hydraulic Unit with Both Single and Double Acting Actuation

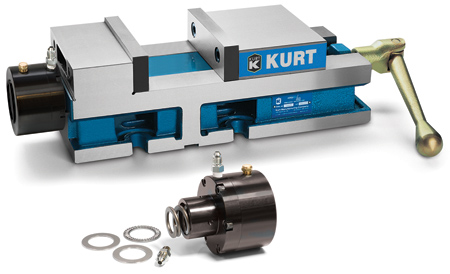

Kurt's new KHU6 hydraulic unit comes ready with both single and double acting capabilities, providing a convenient option to the user's preferred clamping method. Single acting method uses hydraulic clamping and spring return for unclamping. Double acting capability uses both hydraulics to clamp and unclamp for faster, more precise set-up.

Switching between single and double acting only requires switching out the brass breather fitting with the supplied hydraulic fitting. The KHU6 is available as a retrofit for existing vises and will come standard on all Kurt 6" hydraulic vises for the HDH690, HDH691 and 3600H, 3610H, 3630H, XL6H and XL6HR models.

The KHU6 hydraulic unit uses 3,200 PSI operating pressure that provides a .25" stroke and 7,200 lbs. of clamping force. Clamping consistency and improved part quality are benefits of hydraulic vise actuation. "Clamping speed is also significantly faster than manually closing and opening vise jaws and can save hundreds of hours over the course of a year for an easy pay-back," said a company spokesperson.

The KHU6 hydraulic unit is a direct replacement for 36BHU hydraulic, which has been removed as replacement and as originally offered in many Kurt 6" vises.

For more information contact:

Kurt Manufacturing Company

Industrial Products Division

9445 East River Road NW

Minneapolis, MN 55433

877-226-7823

workholding@kurt.com

www.kurtworkholding.com
