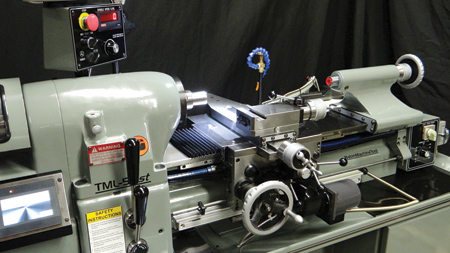

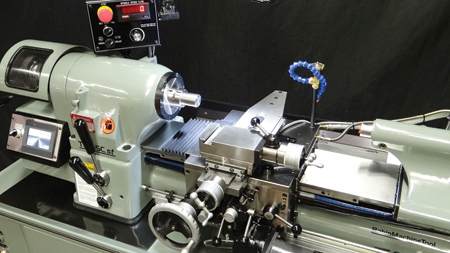

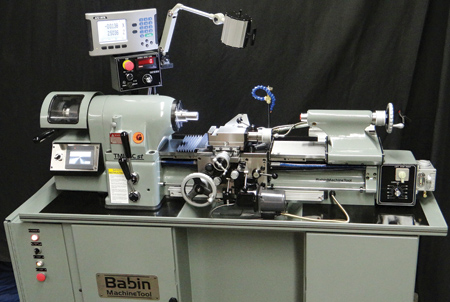

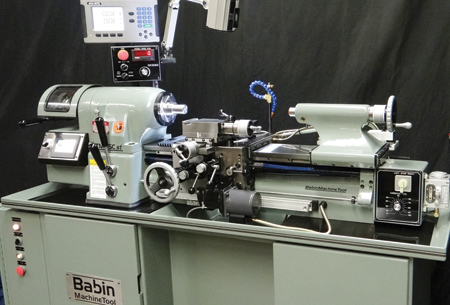

Precision 5C Tool Room Lathe with Servo Threading System



Babin Machine Tool has announced the availability of its new precision 5C style tool room lathe, TML-5Cst with USA made servo threading system.

Designed for the modeling and prototype shop environments, features of the TML-5Cst lathe are the Hardinge style wide dovetail bedplate design, direct drive 5 HP spindle to 3,500 RPM, 5C lever collet closer and high precision .0001" tool room accuracy.

Manual threading is made easy using color touchscreen for data entry of threading information. No gearbox maintenance, knob settings or external gearing required.

Wide range of metric (.1 mm - 6.35 mm) or traditional English pitch (4 - 250 TPI) are standard as is the ability to program up to four multi-start thread leads and LH threading.

Options include Acu-Rite or Newall DRO system, chucks, collets, tool post with tooling. All lathes are delivered from the Babin Machine Tool facility and each TML-5C lathe is fully qualified for accuracy, fit and finish before delivery to the customer.

Other available lathe models are the TML-5Cem with manual threading gearbox and model TML-5Cnc with full manual and CNC capabilities featuring USA made Centroid T400 conversational CNC control.

For more information contact:

Babin Machine Tool

14 Upland Road

Brockton, MA 02301

508-588-9189

sales@babinmachine.com

www.babinmachine.com
