Expanded Actuator Line

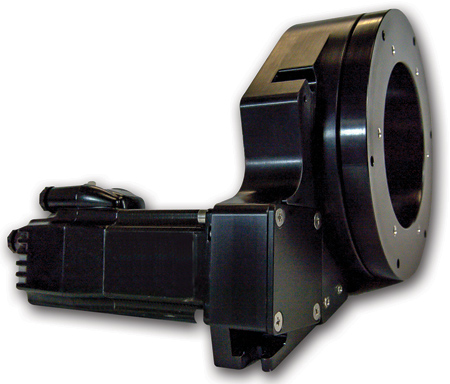

Moog Animatics ROT1 rotary actuator is designed for high speed indexing and precision rotation.

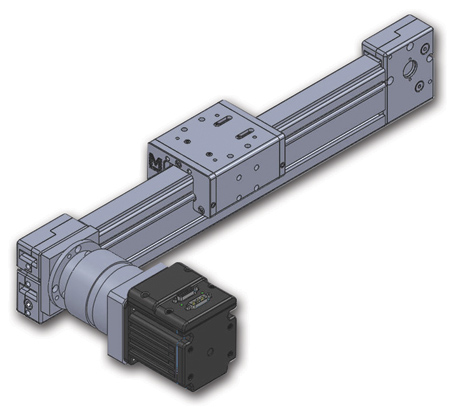

Moog Animatics PSC belt-driven linear system

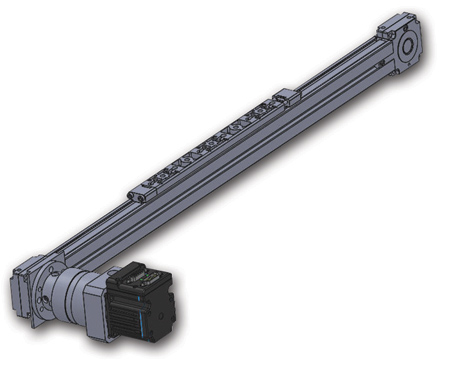

Moog Animatics M6S belt-driven linear system

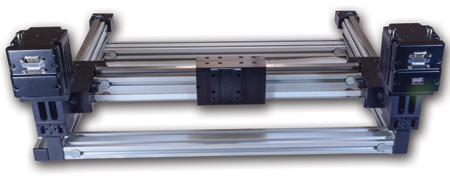

Moog Animatics HBOT1 horizontal two-axis gantry system

Moog Animatics, a division of Moog Inc., has announced the release of three high performance models to its actuator product line. "These fully integrated actuators bring SmartMotor capabilities (ease of use, compactness and speed to market) to today's actuator applications," said a company spokesperson. They are designed for precise motion, long life and minimal maintenance. Typical applications include material handling, packaging, biomedical and life sciences.

ROT1 rotary actuator is a belt-driven rotary stage with low backlash and high positional accuracy. It is designed for high speed indexing and precision rotation. It is available with through holes from 16 to 100 mm.

PSC / M6S actuators are belt-driven linear systems with integrated guide rails, low backlash and high traverse speeds. These actuators are designed for moving light loads at speeds beyond the reach of ball screw actuators. Standard models are available with strokes from 150 to 3,000 mm.

HBOT1 / TBOT1 belt systems use a combination of belt actuators for two-axis motion. The motors remain stationary, removing the requirement for cable tracks and high flex cabling. "The SmartMotor helps simplify this motion as it can interpret direct Cartesian coordinates and perform the transforms on the fly to create the motion and positioning required," said the spokesperson.

These Moog Animatics actuator models are shipped preassembled with the Moog Animatics SmartMotor selected by the customer.

For more information contact:

Moog Animatics

1421 McCarthy Boulevard

Milpitas, CA 95035

408-965-3320

sales@animatics.com

www.animatics.com
