Multi Tool Electro Spindles

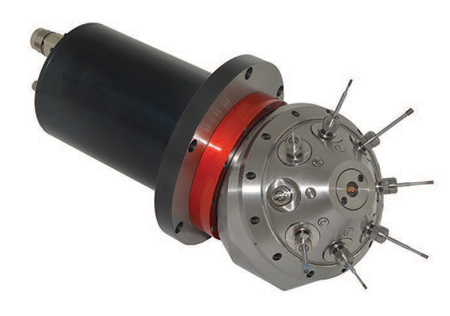

ITI Tooling Company's ATC Series of Electro-spindles with a built-in multi station tool carrier have been designed for optimum performance on production machines and robots when multiple operations or redundant tooling is required.

Featuring durable construction and low maintenance design, these spindle assemblies are available in six different frame sizes ranging from 6" to 17" diameter, with speeds ranging from 14,000 RPM to 80,000 RPM, power up to 40 HP and each with up to eight tools that link directly to the spindle bore via a precision HSK connection. All spindles utilize precision bearings that provide accuracy and rigidity with no vibration or chatter and the sealing system helps ensure longevity even in demanding environments.

These ATC Series spindle units are available with either a flange or foot type mounting and can be used in a variety of orientations.

For more information contact:

ITI Tooling Co Inc

37 Orchard Street

Ramsey, NJ 07446

201-934-6333

info@ititooling.com

www.ititooling.com
