Collet Style Rotary Transfer Machine

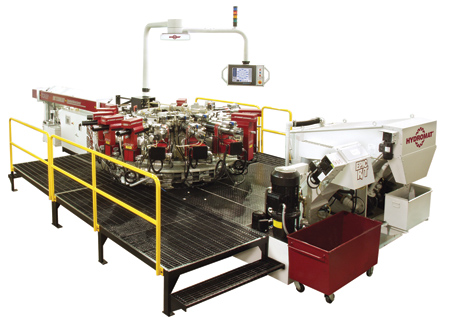

The Hydromat EPIC R/T 32/45-16 Rotary Transfer machine produces precision metalcutting for bar-fed applications.

The Hydromat EPIC R/T 32/45-16 is a collet style rotary transfer machine for precision metal cutting of stock sizes up to 1.75" round, 1.5" hex and 1.25" square diameters and a length up to 6". This machine utilizes 16 horizontal tool spindles and the capacity of up to eight vertical tool spindles, featuring up to 24 tools in the cut at once. It also has the rigidity to handle a variety of components and material types within its work envelope. Non-rotating bar stock was designed for quiet, vibration free operation.

"The EPIC R/T 32/45-16 possesses the characteristics of more conventional Hydromats while featuring the latest in CNC rotary transfer technology - Embedded Motion Control (EMC), a special plug & play control architecture embedded into each toolspindle unit, offering fully independent functionality for each axis motion," said a company spokesperson. "The modular tool spindle system with quick-change pre-settable heads helps the EPIC R/T offer quick changeovers - typically 1-3 hours. The EPIC R/T 32/45-16 supports Lean Manufacturing principles and competitive manufacturing at small, medium and large production quantities."

The Hydromat rotary transfer machine is a modular system consisting of horizontal and vertical toolspindles rigidly mounted around a precision cast base. This arrangement provides versatility and flexibility in a turnkey machining system.

The Hydromat machine is a solution for the elimination of secondary operations by producing parts complete from barstock, castings, forgings or cold formed blanks. "The Hydromat machining platform helps eliminate secondary operations and reduce work in progress," said the spokesperson. "Additional cost reduction occurs due to short remnants and thin cutoff for material saving. Also increased productivity is partially due to the modular toolspindle system with quick-change presettable tool heads for easy changeover."

Typical components suited for machining on Hydromats include automotive ABS and brake systems, fuel, electrical, engine and steering components, plumbing and HVAC valve castings, faucet bodies and gas valves and connectors, hardware power tool and appliance housings, electrical wire connectors and switch bodies, defense and aerospace fuse bodies and instrument housings.

For more information contact:

Kevin Shults

Hydromat, Inc.

11600 Adie Road

St. Louis, MO 63043

314-432-4644

kshults@hydromat.com

www.hydromat.com
