Cordless Line of Grinders



Suhner Abrasive Expert has expanded its product range with a complete series of four cordless compact grinders. This series consists of the straight grinder ASC 9, the belt grinder ABC 7, the fillet weld grinder AKC 3 and the tube polisher ATC 7.

What they all have in common is the SUHNER design, a latest generation electric motor and efficient battery technology. A detachable particle guard protects the motor from coarse dust while the machines' working speeds have been optimized for their respective applications. The battery packs deliver 18 V with a total capacity of a 4 Ah.

Suhner cordless tools incorporate intelligent battery management safeguards for enahnced interaction between components and the optimal use of the available energy. Also, the temperature of the battery pack and machine is monitored continuously. If overheated or overloaded, the device is switched off by the electronics. A shock absorbent rubber jacket shields the battery packs from the hard knocks of everyday use on the job site.

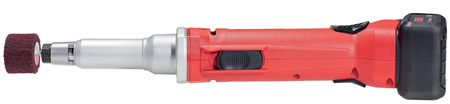

The universal cordless straight grinder ASC 9 is designed for work with non-woven brushes and flap wheels. Typical work includes the removal of tarnishing and blending on matte surfaces. The reduction gears fitted in the machine can deliver a high torque and consistent working speed, providing a uniform grinding pattern. The machine is fitted with a chuck system that is designed for quiet running with minimal vibration. Users can choose between the 1/4" chuck or 6 mm chuck (primarily in Europe). Optional chucks can accept arbors up to 8 mm. The cordless straight grinder ASC 9 operates at a speed of 9,000 RPM and weighs 4.4 lbs. including the battery pack.

The cordless belt grinder ABC 7 is designed for working on applications with tight spaces. For example, in fillet welds or miters. The machine is characterized by fast belt changes for grinding or polishing applications. The standard version of the ABC 7 includes the universal contact arm KA 25/9. It can be fitted with belts 1/8", 1/4" and 1/2" wide. For greater flexibility, Suhner offers additional contact arms available for belts 1/8", 1/4", 1/2", 5/8" and 3/4" wide. The cordless belt grinder ABC 7 operates at a speed of 7,000 RPM and weighs 5.3 lbs. including the battery pack.

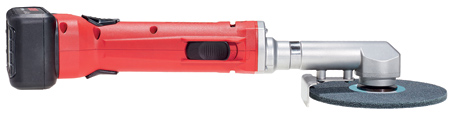

Developed for metalworking, the cordless fillet weld grinder AKC 3 features reduction gears. Due to its lightweight design and long neck of aluminum, the tool weighs only 4.8 lbs. including the battery pack for easy maneuverability. In addition, the low cross head aides the user when working in low clearance areas. This makes the grinder ideal for fillet welds in tight places, a problem encountered often on railings and other metal structures.

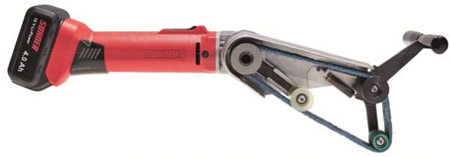

The cordless tube polisher ATC 7 is designed for tubes up to 1-3/4" in diameter. When working on tight elbows, the cordless tube polisher can be easily maneuvered to complete the job quickly. A wraparound angle of at least 180° helps ensure fast, efficient work, and the wraparound is not maintained by the contact pressure. Material can therefore be removed under considerably less pressure while maintaining control.

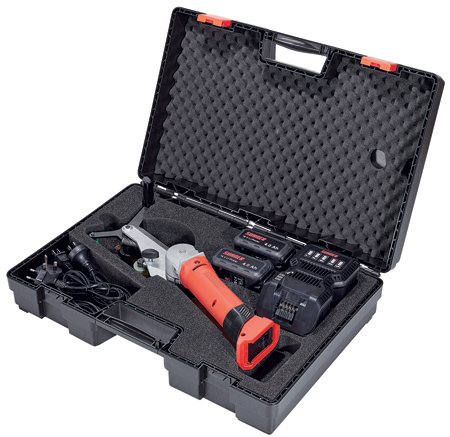

The four cordless grinders are available as a set consisting of the machine, two battery packs and the charger in a composite case. The set also includes four different battery charging cables that can be connected to common sockets.

Due to their design and low weight, these grinders are built to simplify the work on railings, steps, metal structures, plant components, tanks and containers among other applications.

For more information contact:

Suhner Industrial Products Corp.

Hwy. 411 S. at Suhner Drive

P.O. Box 1234

Rome, GA 30162-1234

706-235-8046

info.usa@suhner.com

www.suhner.com
