VMC with Trunnion Style Table

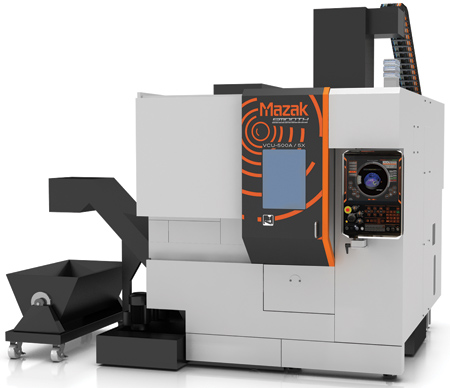

The VCU-500A/5X vertical machining center (VMC) has a trunnion-style rotary/tilt table that allows for accurate processing of small complex parts via full 5-axis machining. The machine also comes with the new MAZATROL SmoothX CNC that is engineered for easier programming and faster part cycle times.

The VCU-500A/5X comes standard equipped with a high-performance CAT-40, 10,000 RPM spindle that delivers enhanced metal removal capabilities in common materials, including steel, aluminum and cast iron. Optional speeds of 12,000 RPM and 20,000 RPM are available to address a variety of part production requirements.

A standard 30-tool magazine helps ensure continuous machining operation, while an optional 40-tool magazine helps further increase production flexibility. The machine's automatic tool changer provides fast tool exchanges for an overall reduction in non-cut times. "Furthermore, reliable tool monitoring on the VCU-500A/5X maximizes production efficiency and lowers operating costs via early problem detection," said a company spokesperson.

Axis travels for the VCU-500A/5X are 19.88" in X, 19.88" in Y and 20.07" in Z, allowing it to accommodate part sizes up to 19.68" in diameter and 12" high. Rapid traverse speeds for these three linear axes are 945 IPM.

The trunnion-style rotary/tilt table on the VCU-500A/5X is constructed with durable high-speed roller gear cam drive technology for high torsional rigidity and positioning accuracy. The table tilts +95°/-45° in the B-axis and rotates 360° in the C-axis and can accommodate workpiece weights up to 440 lbs.

The latest MAZATROL SmoothX CNC is engineered to be easy to generate programs for complex parts production. It has several functions that allow it to ensure short machining cycle times, especially in fine increment programs for simultaneous 5-axis operations and free-form die-mold machining.

Ergonomics also play a role in the functionality of the MAZATROL SmoothX CNC. A 19" display presents critical machine data within a single page view, while the tilt control panel allows for positioning based on operator height. An intuitive multi-touch screen, similar to that of a smartphone, enables programming operations. An SD card allows the CNC to store up to 32 GB of data.
