CNC Turnkey Prewired Packages



OSAI has introduced its new CNC turnkey prewired packaged systems for the metalworking CNC plasma, laser and milling industries.

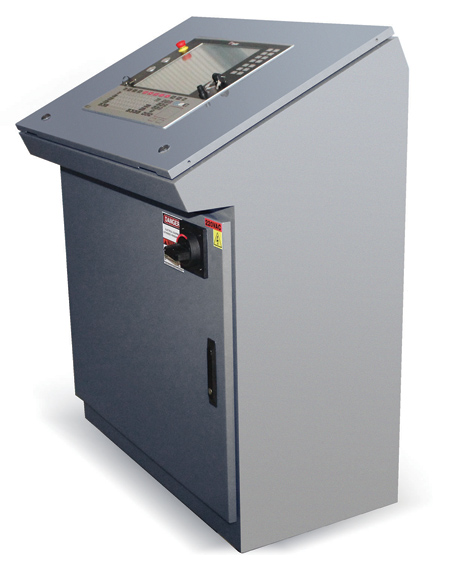

These packages are completely digital with Ethercat servo drives and brushless motors (230V or 400V) that are prewired and configured for plasma, oxy-fuel cutting systems, laser, milling machines and routers. OSAI's base packages are 3 to 4 axes with options of up to 8 axes. The package is equipped with compact panel (15" color LED screen/keyboard/jog console). Other options include a TOP5 remote pendant that includes a 6.4 resistive touchscreen, jog keys, emergency button, start, stop, reset, accessible USB port and configurable buttons.

The new standard Ethercat protocol serves as the basis for connecting all of the products in the family, enabling information to be exchanged between the various nodes and, when needed, making it possible to monitor several elements belonging to the same product family. With the OSAI Device Manager (ODM), the integrator can manage the kinematics of the machine and adjustable machine parameters (AMP). This enables the user to remotely log in to the CNC to view or change any parameters related to the CNC, drives and motors.

OSAI packages have a Windows-based front-end. This allows the end-user the flexibility of using a typical PC environment with industrial CNC reliability. The CNC includes an optional conversational package (OPENMill) to create simple to complex programs. Basic cutting, profiling, drilling and milling can be programmed and executed with the control package.

For more information contact:

Ivica Simunic

National Sales Manager

OSAI USA

711 East Main Street

Chicopee, MA 01020

413-598-5200

sales.osai.usa@primaelectro.com

www.osaicnc.com
