CNC Turning Center with Digital Y-Axi

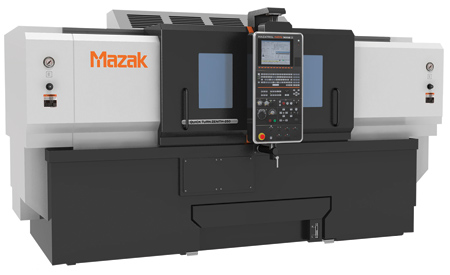

"The Mazak Quick Turn Zenith (QTZ) 250 turning center with multitasking capabilities features innovative functions that are designed to bring efficiency and value to small parts production," said a company spokesperson.

Built for the automotive, consumer electronics, contract manufacturing and medical industries, the QTZ 250 employs two 20 HP, 4,500 RPM turning spindles for DONE IN ONE parts production, a milling turret with a rotary tool spindle for multitasking operations and a digital Y-axis for off-centerline machining.

The machine's integral spindle/motor headstock provides rigidity in heavy-duty machining and precision in high-speed applications. A variable-speed AC inverter powers the headstock, designed for zero blacklash.

The servo-driven turret on the QTZ 250 offers multiple tool configurations for easy changeover. It also features a roller gear cam drive system, designed to provide a smooth high-speed, accurate indexing motion. "The roller gear design helps eliminate the need for expensive components, such as curvic/index couplings," said the spokesperson.

"Together, the digital Y-axis and innovative turret design give the QTZ 250 enhanced capabilities," continued the spokesperson. As opposed to being perpendicular to the turning spindle, the turret is parallel to it. Roller gear cam technology drives the turret for infinite radial positioning. This configuration allows the turret to position in the Z and A (turret rotation) axis to perform Y-axis machining. "The configuration eliminates the need for an actual Y-axis slide mechanism, which makes the machine cost effective without any performance sacrifices," said the spokesperson.

For more information contact:

Tasha Riddell

Mazak Corporation

P.O. Box 970

Florence, KY 41022-0970

859-342-1700

triddell@mazakcorp.com

www.mazakusa.com
