Expanded Line of Drill/Tap/Mill Centers



Haas Automation's small-footprint DT-1 Drill/Tap Center and DM-1 Drill/Mill Center are built for speed, accuracy and increasing throughput while optimizing floor space.

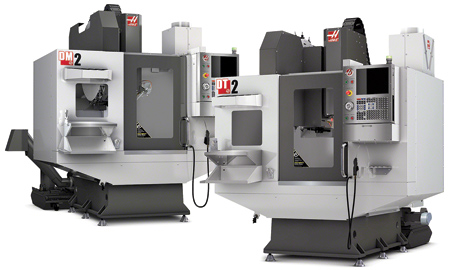

"Haas has now expanded its drill/tap/mill product line with a pair of high-speed, lean-style machining centers - the DT-2 and DM-2 - that provide the same high acceleration rates, fast axis speeds and short tool change times as their smaller counterparts, while offering an additional 8" (203 mm) of X-axis travel and table length - with only a slight increase in footprint," said a company spokesperson.

The DT-2 and DM-2 are identical in specifications, except for spindle taper and tool changer. The DT-2 is a BT30 taper machine, with a 15,000 RPM inline direct-drive spindle and a high-speed 20+1 side-mount tool changer. It is available with an optional 20,000 RPM spindle. The DM-2 is a 40-taper machine, with a 15,000 RPM inline direct-drive spindle and a high-speed 18+1 side-mount tool changer. The new DT and DM both allow high-speed rigid tapping to 5,000 RPM, with up to 4X retract speed to shorten tapping cycles.

Both machines offer a 28" x 16" x 15.5" (508 x 406 x 394 mm) work cube and a 34" x 15" (864 x 381 mm) T-slot table. The increased table size, longer X-axis travel and larger work envelope can accommodate multiple fixtures and multi-spindle rotary tables for increased production and set-up flexibility. The compact footprint still allows multiple machines to be placed side-by-side for efficient use of valuable shop floor space.

The spindle on both machines features a 15 HP (11.2 kW) vector drive system that provides 46 ft-lbs. (62 Nm) of cutting torque. The spindles are coupled directly to the motors to reduce heat, increase power transmission and provide better surface finishes. Cutting feedrates for both machines are 1,200 IPM (30.5 m/min), and 2,400 IPM rapids and high acceleration rates combine to shorten cycles times and increase throughput.

For efficient chip removal, the DT-2 and DM-2 feature steeply sloped internal sheet metal. Optional twin chip augers transport chips to exit at the rear of the machine, allowing multiple machines to be placed close together. A rear chip-lift auger is also available for higher-volume applications. A 45 gallon (170 L) flood coolant system is standard, with options for a programmable coolant nozzle and high-pressure through-spindle coolant systems. A wide selection of options is available to further boost productivity, including high-speed machining software, wireless tool and work probing, 4th- and 5th-axis capability and more.
